Mini Portable Handheld Laser Welding Machine 220V AC 50Hz Automatic Wire Feeding

Name: Mini Portable Handheld Laser Welding Machine 220V AC 50Hz Automatic Wire Feeding
Brand: Herolaser
Price: 1 USD

Wholesale Mini Portable Handheld Laser Welding Machine 220V AC 50Hz Automatic Wire Feeding from china suppliers

Brand Name : Herolaser

Certification : ISO9001, CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 sets per month

Delivery Time : 30-45 days

Packaging Details : Wooden caseParameter Machine Parameters Size 650x300x621[mm](L×W×H) Weight 75[kg] Optical Parameters Output Power (Watt) 1500W Working Mode CW/Modulating Pulse Linear Array/Timing Output Power Adjusting Range (%) 1-100% Laser Wavelength (nm) 1075 ± 10 nm

Size : 26x12x24[inch](L×W×H)

Weight : 75[kg]

Output Power (Watt) : 2000W

Indicating Laser Wavelength : 650

Working Mode : CW/Modulating Pulse Linear Array/Timing

Output Power Adjusting Range (%) : 1-100%

Contact Now

2000w Laser Hand-held Welding Machine Air Cooled Portable Fiber Welder Gun Head Metal Machine

HEROLASER Mini Portable Handheld Laser Welding Machine

Parameter

Machine Parameters
Size	26x12x24[inch ](L×W×H)
Weight	75[kg]
Optical Parameters
Output Power (Watt)	2000W
Working Mode	CW/Modulating Pulse Linear Array/Timing
Output Power Adjusting Range (%)	1-100%
Laser Wavelength (nm)	1075 ± 10 nm
Output Power Undulate Range	＜5%
Max Modulation Frequency	50KHZ
Laser Response Time	＜10us
Indicating Laser Wavelength	650
Indicating Light Adjusting Range	＜1mW
Conduction System Parameters
Port Type	Automatic Wire Feeding Welding Head
Collimating Focal Distance	50mm
Focusing Distance	150mm
Transmission Length	Standard 5±0.5m, (Optional 10m)
Conduction System Parameters
Cooling and Protection Gas	Inert Gas
Working Ambient Temperature	10-50 ℃
Working Ambient Humidity	≤85 degree
Input Voltage	220 VAC/50Hz/60Hz
Machine Power	≤ 4.8KW

Laser Head Welding Depth Data (Wobble Head)

Power	SS	Carbon Steel	Galvanized Plate
500W	0.5-0.8mm	0.5-0.8mm	0.5-0.8mm
800W	0.5-1.2mm	0.5-1.2mm	0.5-1.0mm
1000W	0.5-1.5mm	0.5-1.5mm	0.5-1.2mm
2000W	0.5-5mm	0.5-5mm	0.5-2.5mm

Products Description

Air-cooling Handheld Fiber Laser Welding Machine

On present sales of 1000W and 1500W air-cooling laser welders. The advantage lies in the high internal integration, small volume and only 75KG weight, which is convenient for transportation and does not need to replace water.

Mini Portable Handheld Laser Welding Machine 220V AC 50Hz Automatic Wire Feeding

Characteristics

Independent R&D Wobble welding head

Independent R&D Wobble welding head, swing welding mode, laser spot width can be adjusted, welding fault tolerance is strong,make up for the disadvantage of laser welding light spot too small , expand the machining parts tolerance range and weld width, to get better weld forming.

Technological Characteristics

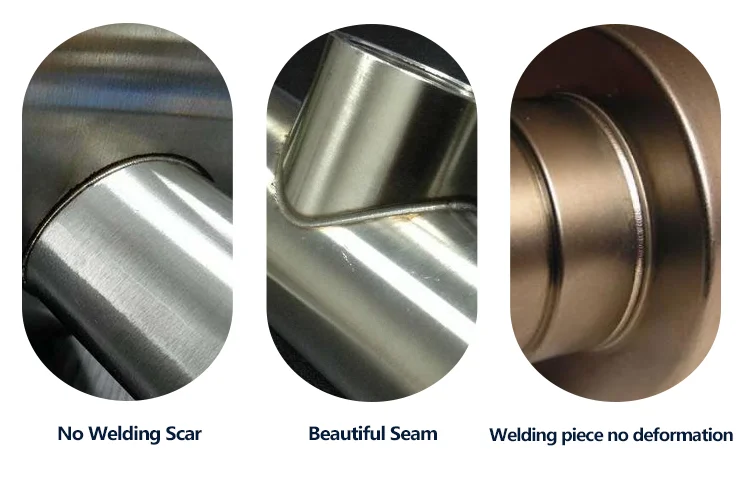

The welding seams are smooth and beautiful, the pieces have no deformation, no welding scar, and the welding is firm enough to reduce the subsequent grinding process, saving time and cost.

Advantages of handheld laser welding machine

Simple operation, can be easily operated with simple training; beautiful products can be welded one take without a master
 WOBBLE handheld laser head, light and flexible, can weld any part of the workpiece, making the welding work more efficient,safe,energy-saving and environmentally friendly.

Applicable Industry

Domestic Appliance

Air & Ship

Auto Parts

Machinery Manufacture

Medical Equipment

Elevator Manufacturing

---Pre-Sales Service

① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service


FAQ

1. What model does Herolaser produce?

Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?

T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.

10. How will you guarantee after-sales services?

We offer two years warranty for laser source, one year for the machine.
