Wobble Welding Handheld Fiber Laser Welding Machine with Automatic Wire feeding
Product introduction:
Herolaser is the first and leading manufacturer in China to develop and produce hand-held laser welding machine. Our handheld laser welding machines use the latest generation of laser sources, including continuous wave/pulse output modes. Suitable for welding stainless steel plate, carbon steel plate, galvanized plate and aluminum plate. Swing welding technology, adjustable focal length, operation with the highest process consistency, ensuring high quality products for the laser industry. Laser welding is a welding technique that uses lasers to join metals together. The beam provides a concentrated heat source, allowing for narrow, deep welding and high welding rates.
Laser processing has proven to be a high-quality, low-cost manufacturing process that requires a minimum of tools. Fewer dies/fixtures make laser machining ideal for prototyping. The Herolaser handheld laser welder can weld up to 10 times faster than traditional TIG welders. Safety design features (work lock, laser enable button and safety clip) provide maximum operator protection. Easy to operate and provides consistent, high-quality results across a wide range of materials and thicknesses, minimizing heat affected areas to ensure an aesthetically pleasing finish. Low power consumption, low noise operation, no special temperature condition requirements, different welding, and high melting point metals are well known advantages of laser welding machines. The equipment adopts integrated design, compact size, suitable for various working environments. Less skilled operators can produce the same results.
Machine features:
- Hand-held welding, flexible operation, wide range of reach.
- Simple operation, easy to master, workers only need 1 day to be familiar with, suitable for all kinds of complex welds, overcome the limitations of the table.
- Continuous welding mode, smooth weld, no fish scale pattern, no welding scar, no need for next grinding.
- The welding heat affected zone is small, the welding quality is good, the workpiece deformation is small.
- Photovoltaic conversion efficiency of more than 30%, greatly reducing energy consumption.
- Fast welding speed, up to 10 times that of argon arc welding speed, can save 3 welding labor.
Machine advantages:
- Full touch screen control, user-friendly, easy to operate
- Latest laser generator, wobble welding joint using magnetic levitation motor, more stable
- Beautiful welded joint; Deep penetration, large solder spot
- The weight of welding joint is only 1kg, and the filling effect is good
Technical parameters:
| No. | Item | ML-WF-1000W | ML-WF-1500W | ML-WF-2000W |
| 1 | Laser Power | 1000W | 1500W | 2000W |
| 2 | laser Wavelength | 1070 NM | 1070 NM | 1070 NM |
| 3 | Fiber Cable length | 10 meters | 10 meters | 10 meters |
| 4 | Cooling method | Water | Water | Water |
| 5 | Voltage | 220V | 220V | 380V |
| 6 | Power consumption | 5KW | 7KW | 9KW |
| 7 | Frequency | 50/60 HZ | 50/60 HZ | 50/60 HZ |
| 8 | Currency | 23A | 32A | 23A |
| 9 | Laser gun | motor wobble | motor wobble | motor wobble |
| 10 | Focus length | 150mm | 150mm | 150mm |
| 11 | Cryogenic water flow | 70 L/min | 70 L/min | 83 L/min |
Welding data for refrence:
| 1000W Laser Welder |
| Material (MM) | Efficiency (%) | Speed (mm/s) | Air pressure (Mpa/s) | Wobble diameter (mm) | Wobble frequency(HZ) |
| 0.5 SS | 40--50 | 30--50 | 5—12 | 0.8—1.0 | 80—120 |
| 1.0 SS | 60--70 | 30—50 | 5—12 | 0.8—1.0 | 80—120 |
| 1.5 SS | 60--75 | 15—25 | 8—15 | 1.0—1.6 | 80—120 |
| 2.0 SS | 85--95 | 15—25 | 8—15 | 1.4—1.8 | 80—120 |
| 1.0 AL | 75--85 | 15—25 | 5—10 | 0.8—1.0 | 60--80 |
| 1.5 AL | 90--98 | 12--22 | 5--10 | 0.6—1.2 | 60--80 |
| |
| 2000W Laser Welder |
| 1.0 SS | 30—35 | 30—50 | 5—12 | 0.8—1.0 | 80—120 |
| 1.5 SS | 34—35 | 30—50 | 8—15 | 1.0—1.6 | 80—120 |
| 2.5 SS | 50—60 | 15—25 | 8—15 | 1.4—1.8 | 80—120 |
| 3.5 SS | 60—85 | 15—25 | 8—15 | 1.2—1.8 | 80—120 |
| 2.0 AL | 50—65 | 15—25 | 5—12 | 0.6—1.2 | 60—80 |
| 2.5 AL | 70--90 | 15—25 | 5--12 | 0.6—1.2 | 60--80 |
Machine details:

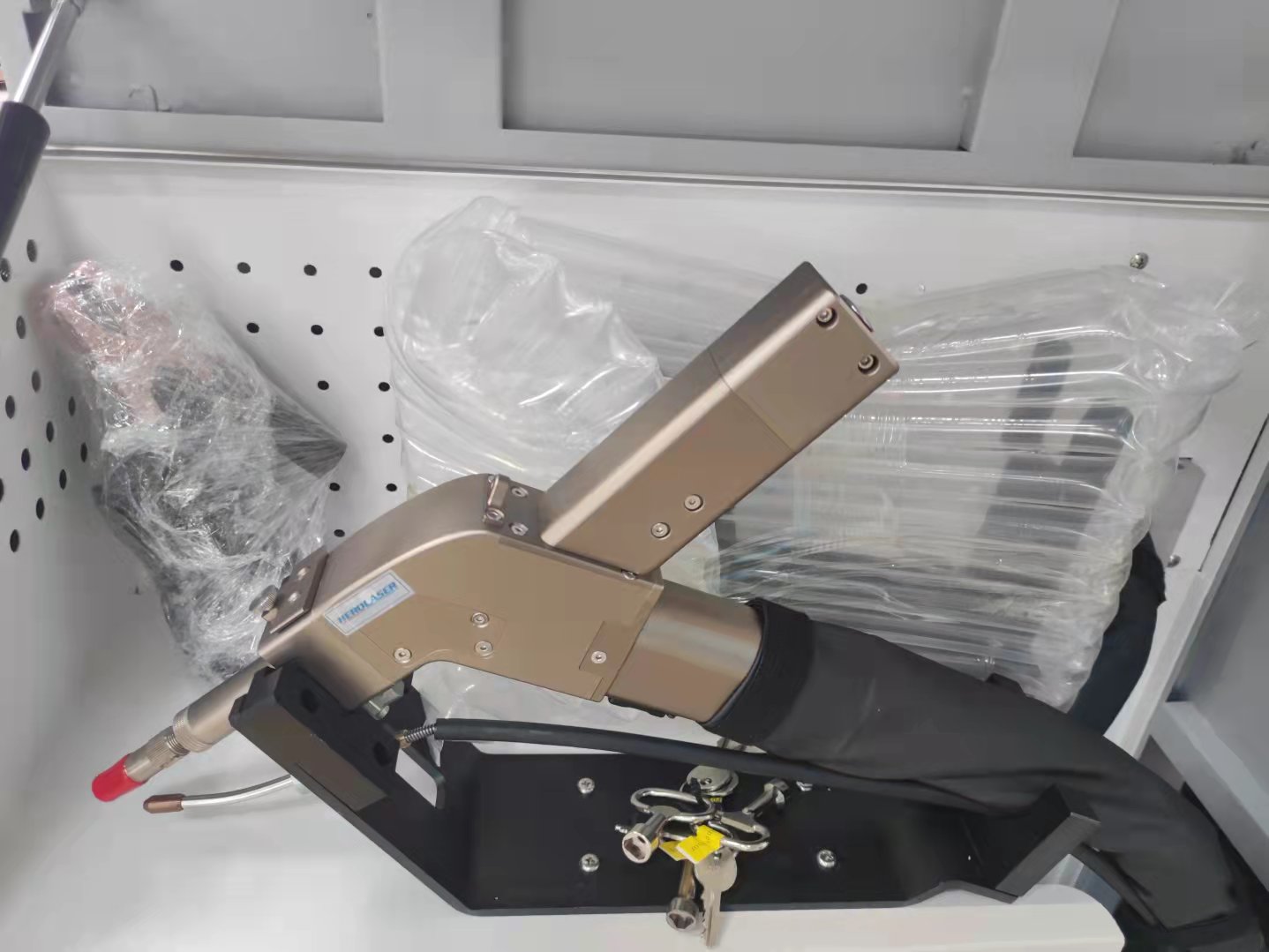

Wobble welding laser head

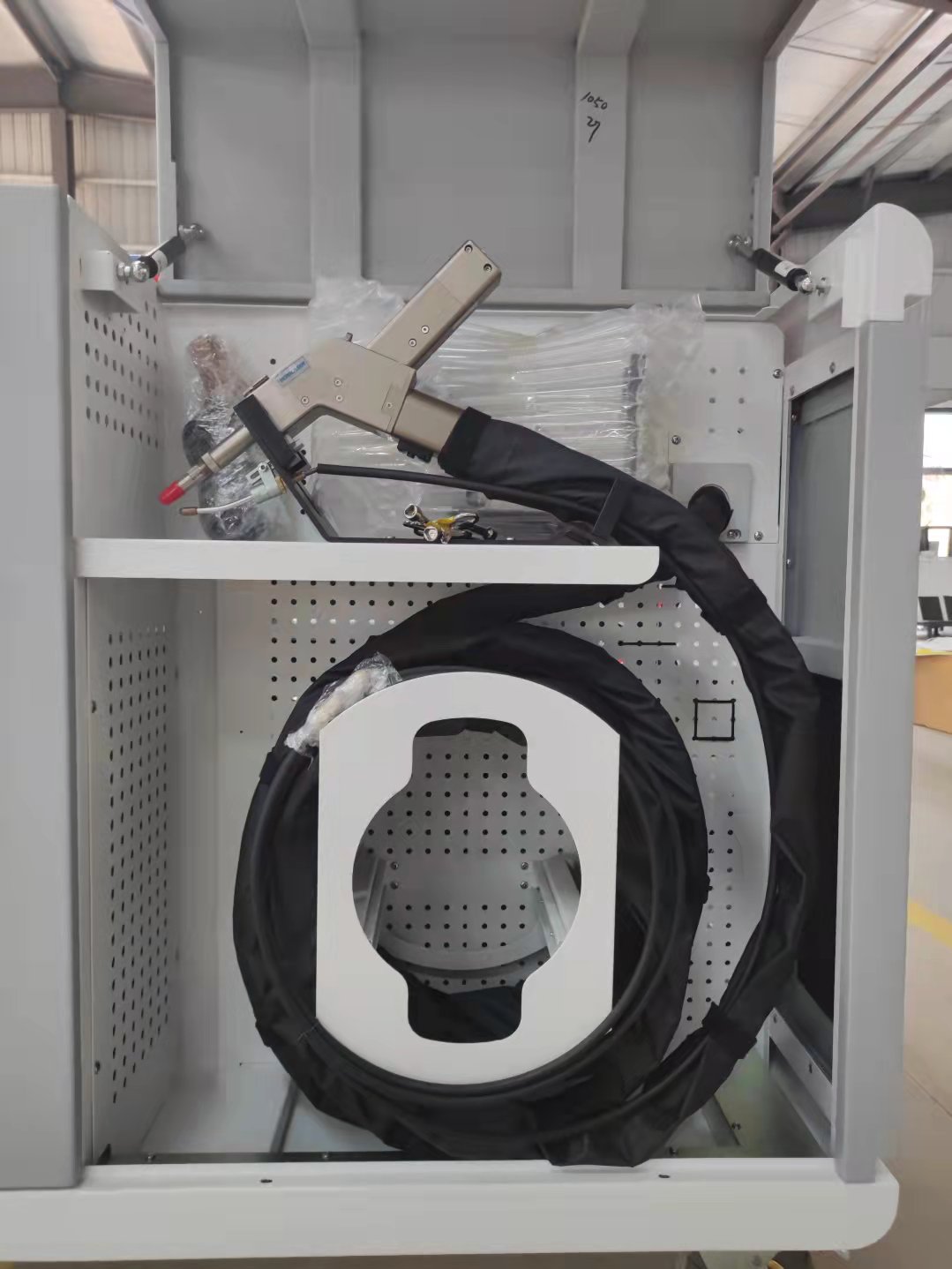

10-meter long laser cable

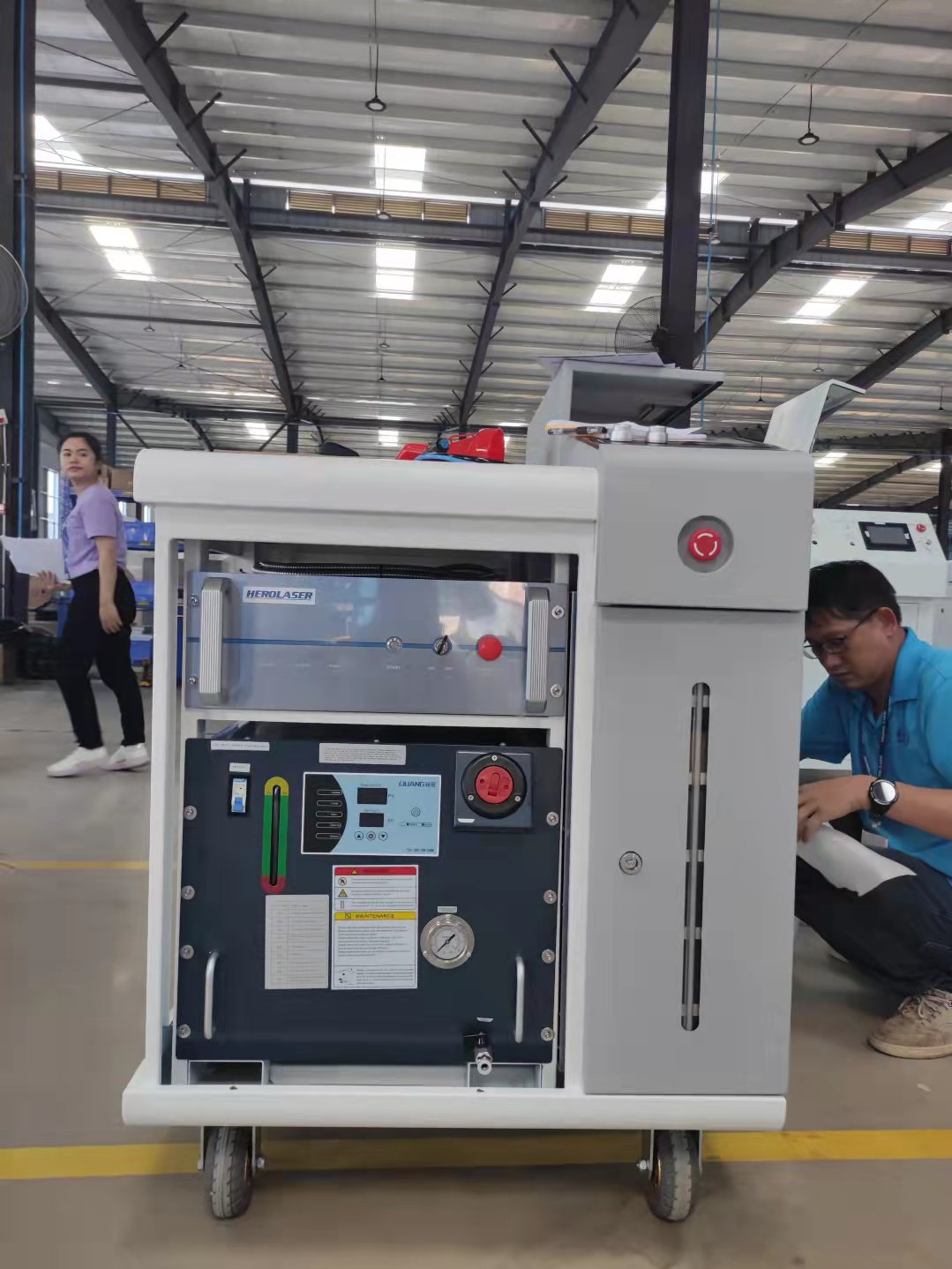

Compact design with built-in water chiller
Application:
Suitable for welding of stainless steel, iron sheet, aluminum, copper, alloy, steel, diamond equivalent materials or dissimilar materials, cabinets, kitchens, stair elevators, shelves, ovens, stainless steel doors and windows guardrails, distribution boxes, Stainless steel household and other industries.

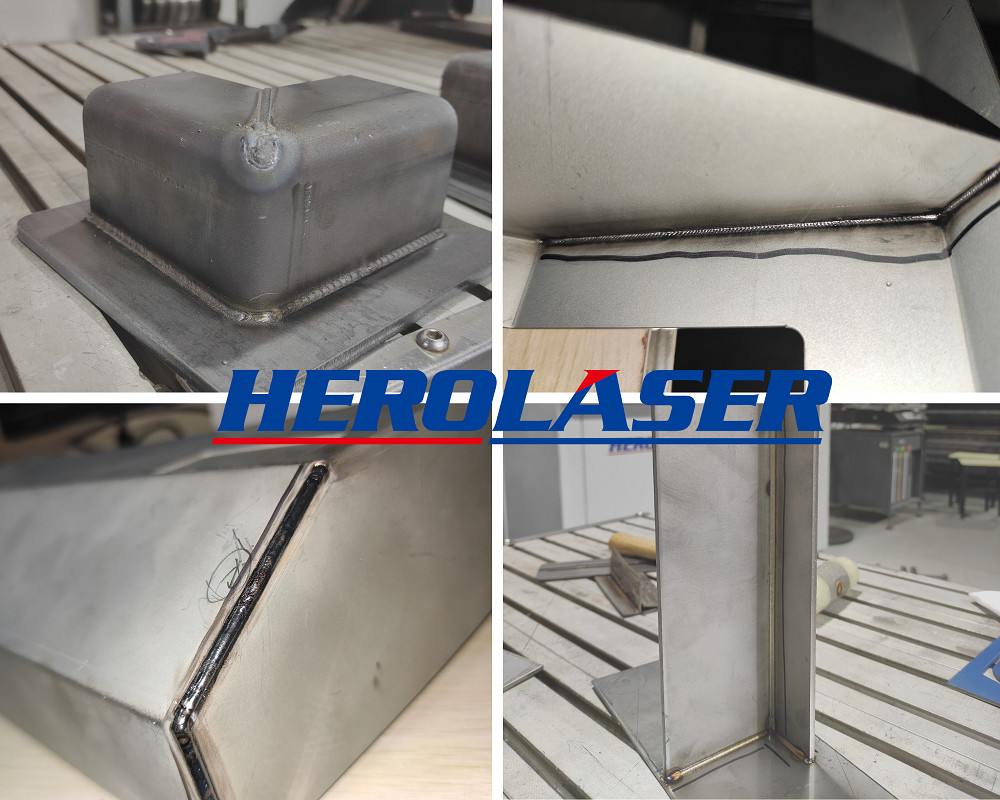

Samples for reference:
F&Q:
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample welding or testing is available
- Progressing solution design to all clients, including distributors and end users.
