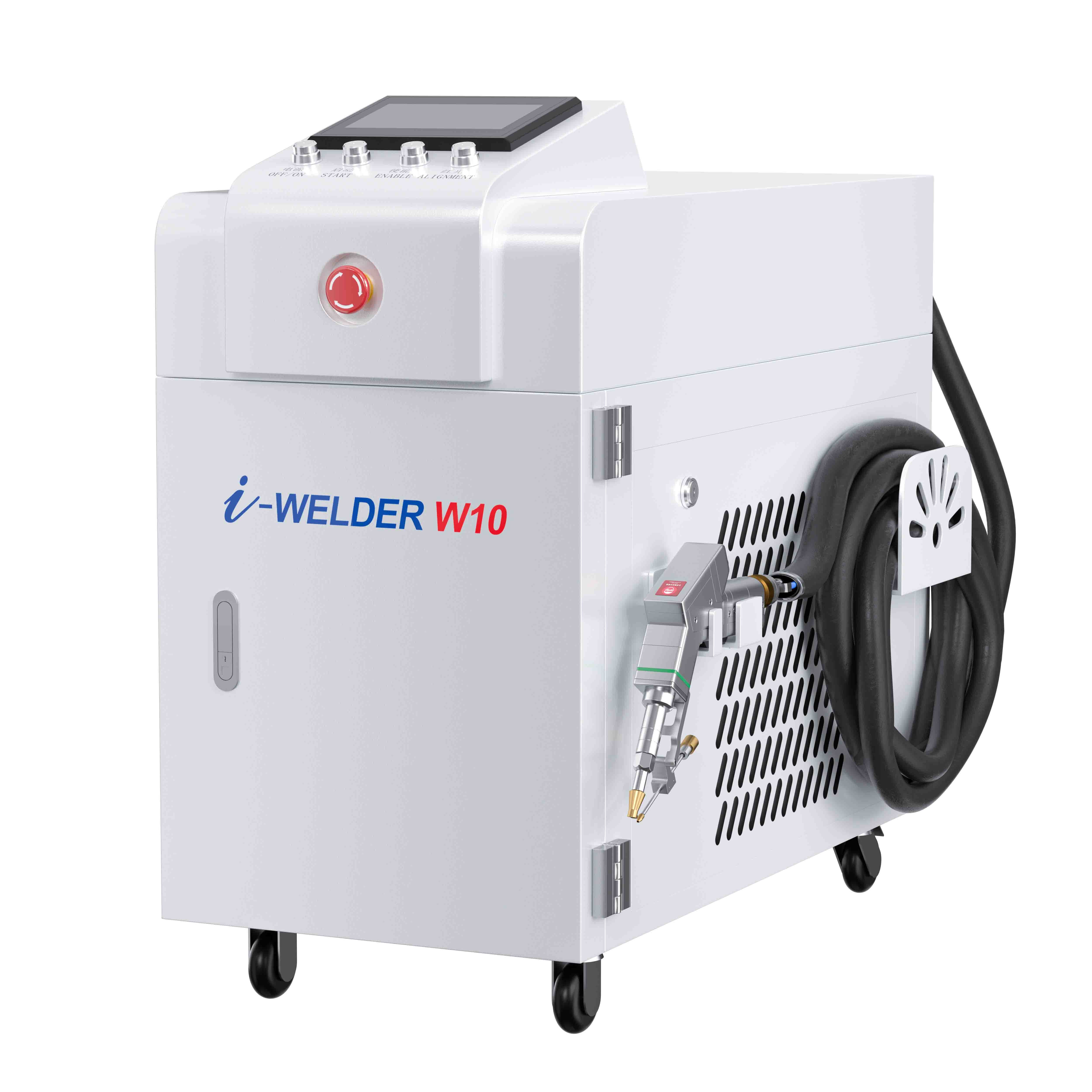

IPG Portable Mini Handheld Fiber Laser Welder Beam Steel For Metal Aluminum

Name: IPG Portable Mini Handheld Fiber Laser Welder Beam Steel For Metal Aluminum
Brand: Herolaser
Price: 1 USD

Wholesale IPG Portable Mini Handheld Fiber Laser Welder Beam Steel For Metal Aluminum from china suppliers

Brand Name : Herolaser

Model Number : ML-WF-BP-10000

Certification : CE, ISO

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P

Supply Ability : 25 sets/month

Delivery Time : 7 work days

Model : ML-WF-BP-10000

Condition : New

Laser Source Brand : IPG

Warranty : 2 Years

Wavelength : 1070nm

Laser cooling : Water-Cooled / Air-Cooled

Contact Now

IPG Portable Mini Handheld Fiber Laser Welder Beam Steel Welding Machine for Metal Aluminum

Products Name	portable welding machine
Laser Power	1000W,1500W,2000W ,3000W for optional
Laser wavelength	1070nm
Way of working	Continuous / Modulation
Fiber length	10M ( 15M Optional )
Weld thickness	0.5-5mm
Welding gap	≤0.5mm (>0.5mm need to add welding wire)
Welding speed	0~120mm/s
Operating Voltage	AC220V or AC380V
Cooling method	Industrial constant temperature water tank (built-in/external)
Products Size	10506701200mm
Environment temperature	15~35℃

Products Description

Herolaser Laser Hand-held Welding Machine Welder
  A leader and navigator in the field of handheld laser welding

Machine Features for portable welding machine

welding by optical fiber, One-time forming workpiece, workpiece not deformed

No welding scars, smooth and beautiful

Welding welding is very firm

The welding head can be replaced to meet various welding needs

No technical requirements, anyone can weld perfectly

Almost no consumables, no grinding is required in processing process, material cost is low

The welding speed is fast, 1 worker can be used as 5 workers, labor cost is low

No dust and gas pollution, very environmentally friendly

IPG Portable Mini Handheld Fiber Laser Welder Beam Steel For Metal Aluminum

Characteristics

Independent R&D Wobble welding head

Gun Features for portable welding machine

1) Wobble technology, swing welding, welding spot can be adjusted, Make up for the small defect of traditional

welding spot, Strong fault tolerance, Increased workpiece tolerance range and weld width

2) Automatic wire feeding design, Stable and continuous wire feeding makes welding seam more beautiful

3) Replaceable copper nozzles, Can meet various welding needs and various shapes.

4) Water cooling design for gun, protective gas design for workpiece, And temperature detection system

5) Except on/off button on machine, But also on/off button on welding gun, More safety for user

Technological Characteristics

The weld line is smooth and beautiful, the welded workpiece is free of deformation and welding scar, the welding is firm, the subsequent grinding process is reduced, and the time and cost are saved.

Applicable Industry

Ship

Auto Parts

Hardware Fitting

Metal Processing

Elevator Manufacturing

Domestic Appliance

Medical Equipment

aviation

Machinery Manufacture

Company Information

ABOUT HEROLASER

Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
  research and development, production and marketing of laser equipment group of companies, has formed a complete series of
  industrial laser equipment supply platform.

  With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

  Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

Certification

Packaging & Shipment

Our Services

---After-sales Services

① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply.
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service


FAQ

1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

  2. What are the payment methods of Herolaser Company?
  T/T, LC, CAD, OA, Trade Insurance, Alibabapay
3. Does Herolaser accept Acceptance?
  Yes, we accept bank acceptances within 6 months, not commercial acceptances.

  4. Can I visit the factory?
  Available to have a visit to our factory at any time.

  5. What can I get with the purchase of equipment?
  Each machine has a set of standard accessories.

  6. Can I go to the factory to test the machine before shipment?
  Of course you can.

  7. How is the delivery and shipment?
  Ship in 7 days after 100% payment; Packaged with Plywood box.

  8. How about your pre-sales service?
  Provide quick response and free consulting services within 8 hours.

  9. How will you guarantee after-sales services?
  We offer two years warranty for laser source, one year for the machine.
