Herolaser 1500W Laser Cutting Machine For Stainless Steel

Name: Herolaser 1500W Laser Cutting Machine For Stainless Steel
Brand: Herolaser
Price: 1 USD

Wholesale Herolaser 1500W Laser Cutting Machine For Stainless Steel from china suppliers

Brand Name : Herolaser

Model Number : ML-C6-QF

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 30-45 days

Packaging Details : Wooden case

Output power rate of the Laser source : 1070nm

Effective cutting area : 600mm*600mm

Cutting thickness (depend on Laser source power) : Carbon ≤8mm；Stainless Steel ≤4mm; Aluminum Alloy ≤2mm; Copper ≤2mm;

Positioning accuracy : ≤±0.03mm

Bearing weight : 300KG

Total Power consumption : 6KW-25KW

Machine weight : About 1200KG

Contact Now

Herolaser 1500 Watt High Precision Laser Cutting Machine Glasses Stainless Steel Metal Automatic Cutting Machine

Parameter

Optical performance parameter
Laser source wavelength	ML-C6-QF
Output power rate of the Laser source	1070nm
Effective cutting area	600mm*600mm
Cutting thickness (depend on Laser source power)	Carbon ≤8mm；Stainless Steel ≤4mm; Aluminum Alloy ≤2mm; Copper ≤2mm;
Positioning accuracy	≤±0.03mm
Repeated position accuracy	≤±0.02mm
Max speed of X-axis	≤20m/min
Max speed of Y-axis	≤20m/min
Max speed of Z-axis	≤17m/min
Synthesis speed	≤20m/min
Max accelerated speed	0.3G
Bearing weight	300KG
Electric demand	AC220V±5%50Hz
Total Power consumption	6KW-25KW
Dimension	188014502100(mm)
Machine weight	About 1200KG
Support Graphical format	DXF

Products Description

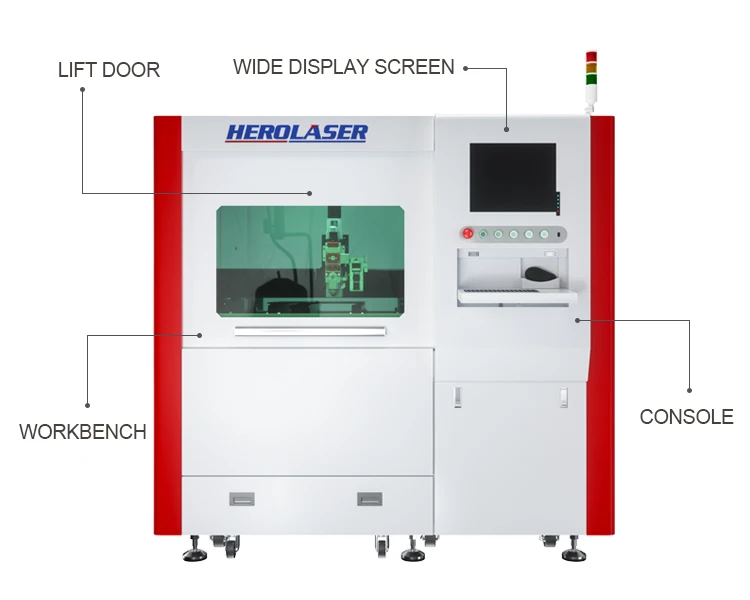

Herolaser 1500 Watt High Precision Laser Cutting Machine Glasses Stainless Steel Metal Automatic Cutting Machine

Laser cutting uses a high-power density laser beam to quickly heat the material to vaporization temperature and evaporate to form a hole, move the beam to form a slit, so that realize the materials cutting . based on this ,Herolaser small area high precision cutting machine also achieves high-precision cutting, no tool wear, low heat impact, fast speed, automatic positioning, automatic correction and other functions.

Herolaser 1500W Laser Cutting Machine For Stainless Steel

Characteristics

1. High Precision laser cutting machine
 Stable, mature technology, high cutting efficiency, small footprint, flexible application with full-time cutting, high utilization
 of the materials, strong expandability , and very flexible

 2. High-precision host
 Precision linear guide, high precision positioning, less wear; can keep high precision for a long time, easy and interchangeable

 3. Laser cutting head
 The laser cutting head is equipped with a sensitive bus-type capacitor, which can be adjusted to the ideal focal length to ensure
 the cutting efficiency and cutting effect

 4. Precise cutting
 Realize the precise cutting and nearly without error and the cutting surface is smooth and flat

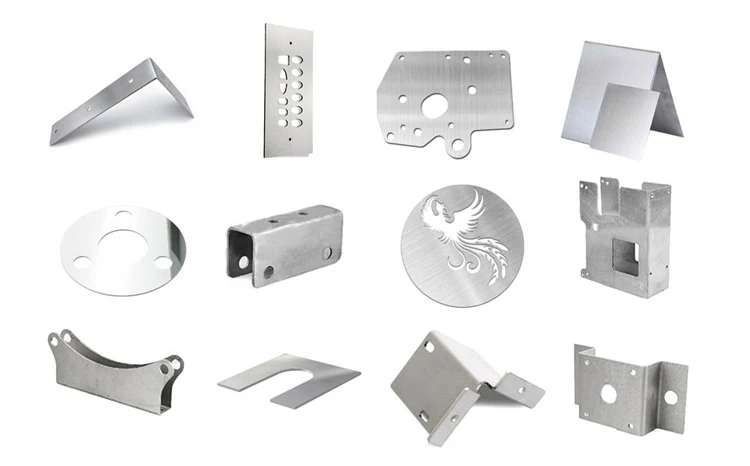

Sample Show

Applicable Industry

moble communications

new enengy lndustry

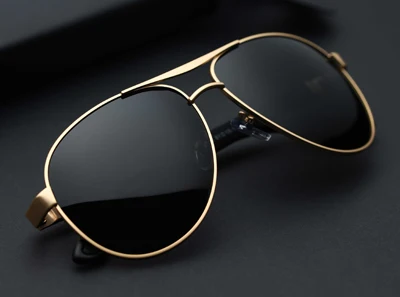

glasses

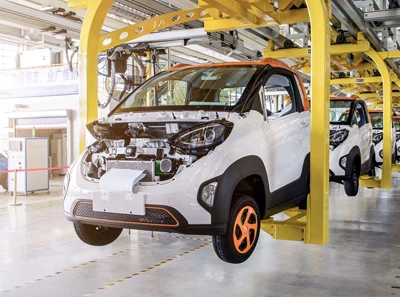

automoble making

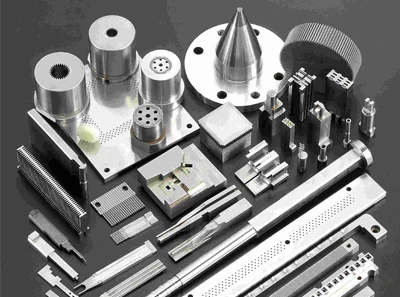

machining

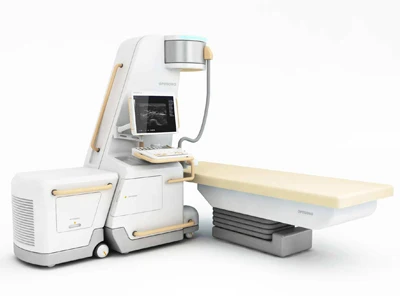

medical equipent

Installation Instructions
