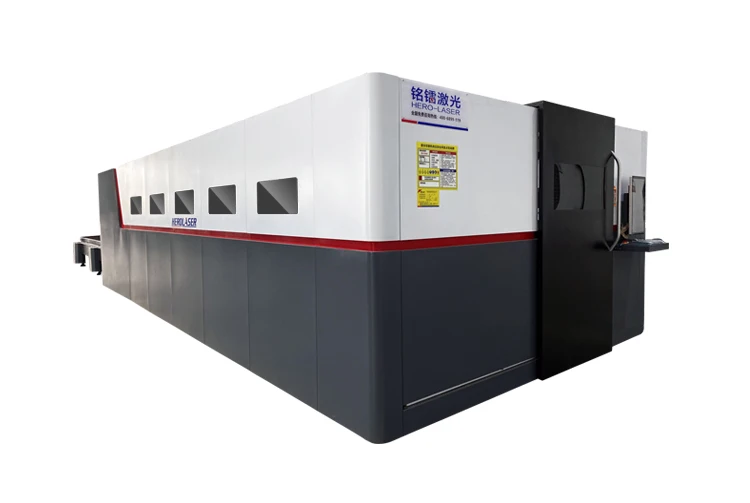

Herolaser Intelligent 12000W Fiber Laser Cutting Machine

Name: Herolaser Intelligent 12000W Fiber Laser Cutting Machine
Brand: Herolaser
Price: 1 USD

Wholesale Herolaser Intelligent 12000W Fiber Laser Cutting Machine from china suppliers

Brand Name : Herolaser

Model Number : ML-CF-6025FB

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 30-45 days

Packaging Details : Wooden case

Laser wavelength : 1070nm

Laser output power : 12000W

Effective cutting rang : 6000mm*2500mm

Cutting thickness (related to laser power) : Carbon steel≤35mm ；stainless steel≤25mm；Aluminum Alloy≤18mm；brass≤12mm

Positioning accuracy : ±0.04mm/m

Repeatable positioning accuracy : ±0.02mm/m

Max. running speed : 100m/min

Max. accelerated speed : 1.2G

Machine size : 15000*3700*2200mm (length*width*high)

Contact Now

Herolaser 12000W Intelligent High Power 12000W Fiber Laser Cutting Machine

Parameter

No	Name	Parameter
1	Device model	ML-CF-6025FB
2	Laser wavelength	1070nm
3	Laser output power	12000W
4	Effective cutting rang	6000mm*2500mm
5	Cutting thickness (related to laser power)	Carbon steel≤35mm ；stainless steel≤25mm；Aluminum Alloy≤18mm；brass≤12mm
6	Positioning accuracy	±0.04mm/m
7	Repeatable positioning accuracy	±0.02mm/m
8	Max. running speed	100m/min
9	Max. accelerated speed	1.2G
10	Machine tool bearing	4 tons
11	Demand for electricity	AC380V±5%/50Hz
12	Whole machine power consumption	160KW
13	Machine size	1500037002200mm (lengthwidthhigh)
14	Weight	About 17 tons
15	Support for graphic formats	plt/dxf,etc

Products Description

Introduction

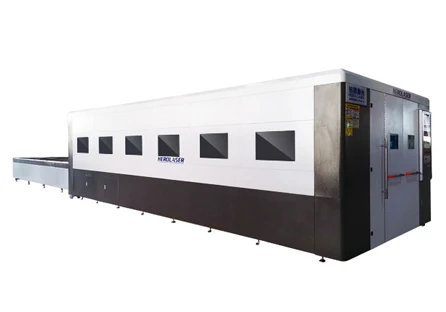

ML-CF-6025FB series laser cutter is a fiber laser cutting machine with advanced structure design and excellent machine tool performance, which applies the world-class CNC and fiber laser. It adopts gantry-type double-drive structure ,integral welded base and rack so that vibration aging treatment is carried out to eliminate the stress during welding and processing after rough machining ;and pinion transmission structure with fast speed, high precision, one-time cutting and forming without subsequent processing.
 Greatly improve the processing efficiency, the layout is visible, the cutting is tight to save material. Advanced technology can increase the progress of your company's new product development and recover your equipment investment cost soon.It is widely used in sheet metal processing, advertising sign production, mechanical parts, kitchen utensils, metal crafts, saw blades, hardware and other industries; also be used for cutting carbon steel, stainless steel, aluminum alloy, carbon steel,copper and other metals.

Herolaser Intelligent 12000W Fiber Laser Cutting Machine

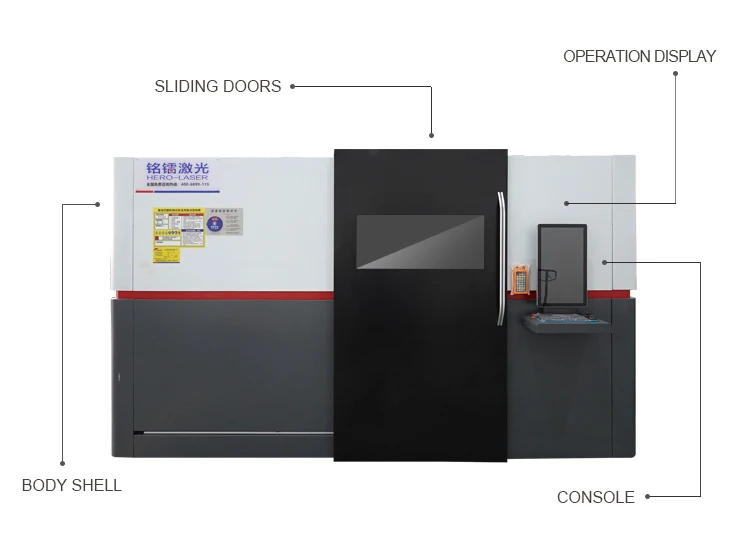

Characteristics

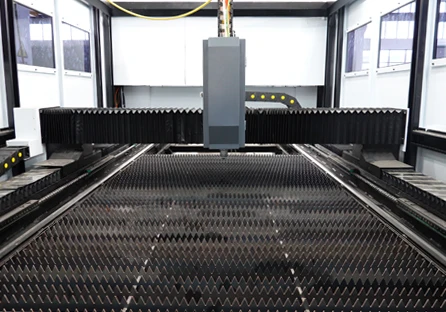

Structure IntroductionMachine body/bed The machine body is tailor-welded by rectangular tubes and steel plates, after annealing to remove the stress, it is roughed by a large gantry milling machine, subjected to aging treatment, and then refined, so that the overall mechanical structure of the equipment remains under ultra-high speed and acceleration conditions with small deformation and low vibration. It obtains extremely high machine tool accuracy, extend the cycle of customer equipment upgrades, and reduce customer use costs.
The bed guide rail and rack and pinion have complete lubrication, which can maintain the precision and service life of the machine tool for a long time.
Beam structure The use of aviation-grade aluminum alloy, the trigon metal stability structure, strong anti-torsion, anti-overturning performance, and the best mechanical properties; the honeycomb internal design is resistant to deformation, can effectively disperse internal and external stress, and has high structural stability; Ultra-high pressure plastic production, compact structure, greatly improved strength.

Features and advantages

Intelligent processing

It can automatically use standard measuring instruments, edge finding, processing and platform exchange functions after enter the
plates thickness and material in the system, eliminating the repetitive operation of batch platess cutting, reducing labor
intensity and improving processing efficiency.

Zero second perforation

Stepless perforation greatly reduces the perforation time by about 75% and improves the processing efficiency;
Continuous perforation, high stability, the waste hole rate is reduced from about 5% to 0.2%, improves the integrity of the workpiece;
High accuracy rate, less slag accumulation, stable follow-up, stable start cutting point, ensuring the best cutting section;
Reduce perforation time, save gas, reduce power consumption, reduce the risk of damage to lasers and cutting heads, and
 improve material utilization;


Perfect sharp corner cutting technology

the smallest aperture ≤ 0.2 times the plates thickness of sharp corner cutting products
 The perfect sharp corner cutting process is a new process developed for high-quality cutting of carbon steel thick platess.
 Compared with the previous standard cutting process, the new process has a faster cutting speed and a smaller section slope (35mm
 carbon steel 15 wires/unilateral).

Double Exchange platform

High and low switching table, complete a switching time ≦20 seconds, greatly improve the processing efficiency, save labor costs.

Automatic location and edge search function

The system has automatic positioning and edge finding function, which makes the feeding more random, faster and faster

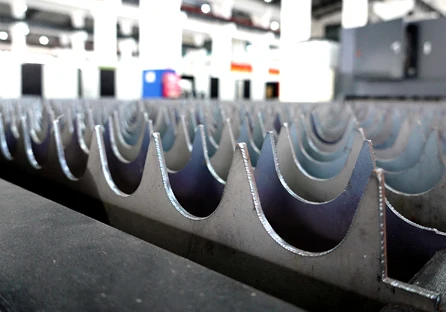

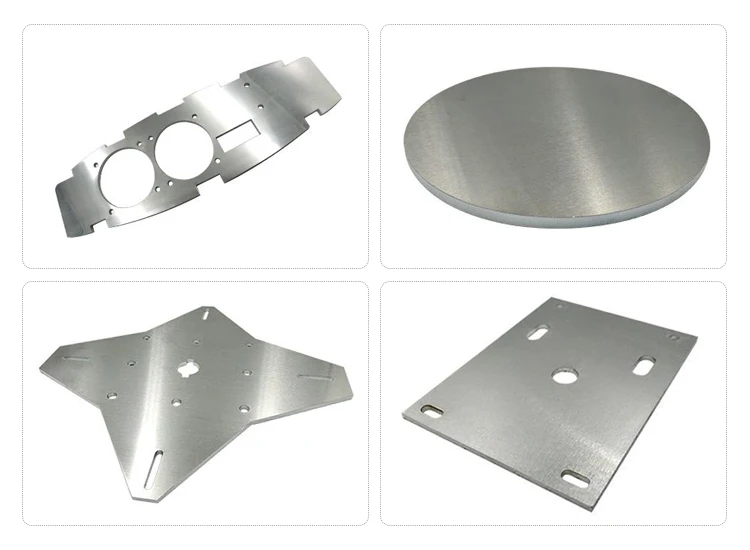

Cutting samples

Applicable Industry

kitchenware

metal crafts

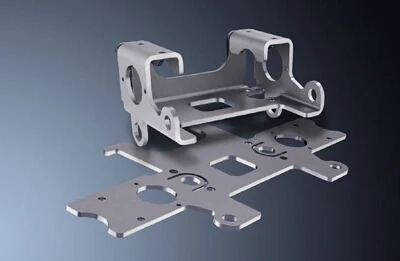

mechanical parts

hardware

advertising signs

metal processing

---Pre-Sales Service

① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service


FAQ

1. What model does Herolaser produce?
 Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

 2. What are the payment methods of Herolaser Company?
 T/T, LC, CAD, OA, Trade Insurance, Alibabapay

 3. Does Herolaser accept Acceptance?
 Yes, we accept bank acceptances within 6 months, not commercial acceptances.

 4. Can I visit the factory?
 Available to have a visit to our factory at any time.

 5. What can I get with the purchase of equipment?
 Each machine has a set of standard accessories.

 6. Can I go to the factory to test the machine before shipment?
 Of course you can.

 7. How is the delivery and shipment?
 Ship in 7 days after 100% payment; Packaged with Plywood box.

 8. How about your pre-sales service?
 Provide quick response and free consulting services within 8 hours.

 9. How will you guarantee after-sales services?
 We offer two years warranty for laser source, one year for the machine.

 10. How will you guarantee after-sales services?
 We offer two years warranty for laser source, one year for the machine.
