Filler Wire 0.1mm-0.5mm Mould Laser Welding Machine For Mould Mold Repairing
Product introduction:
Laser mold welding machine fuse special welding wire damaged parts of the mold by laser instantaneous high heat energy, firmly welded to the original substrate, welding position will be by electric spark surface smooth, grinding and other processes method. After welding, thereby repair the mold. It can be used for precision repair of mold bubbles, cracks, collapses, wear and other small parts. Meichuang mold laser welding machine design beautiful, easy to move. To meet the repair needs of various mold materials, easy to operate. High hardness after welding, no crack and sand hole.
Features:
Welding point’s diameter only 0.1-0.5mm, with high precision and accuracy;
Wavelength of YAG Laser is 1064nm which is less harmful to human skin compare to other laser
Small heating scope ensures distortion free and bubble free work pieces
Compensating the deficiency of traditional argon-arc welding and cold welding in repairing the fine surfaces; low oxidation effects and color change free for work pieces;
Welding operations can be done within the small spaces or deep cavity areas, no damage will be caused to the surrounding walls. No distortion on the mold nor dents around the weld pool can occur.
Edge won’t be damaged by burning when fine parts are repaired.
Argon gas protection ensures the repairing parts and base materials won’t be burned nor oxidized.
Joystick control, movable work piece, fitting and curve;
Operations monitored by microscope, ensuring good vision of fine parts;
Imported welding wires, fitting different kinds of imported mold materials, Polishing and texturing can also be realized.
Processing cost can be greatly saved in terms of materials, labor and time consuming.
Technical Specification:
| Model | MT-W200YM |
| Laser Power | 200W |
| Laser Type | YAG |
| Wavelength | 1064nm |
| Max. Pulse Energy | 90J |
| Max. Welding Thickness | 0.1-0.8mm |
| Gross Power | ≤7KW |
| Laser Welding Wire Dia. | Ф0.2-Φ0.4mm |
| Voltage | 220V±10% / 50Hz / 30A(380v) |
| Pulse Width | 0.2-20ms |
| Frequency | 0.5-20Hz |
| Spot Adjustable Range | 0.2-2mm |
| Working Table | 3D Manual |
| Positioning | Microscope |
| Lifting Distance | Fixed / 300mm |
| Laser Axial Rotation | Fixed / 360° |
| Horizontal Direction | Fixed/Y Axis Can Move /XY Motorizd |
Applicable materials:
Mainly used for the repair of large and medium-sized molds, suitable for S136, SKD-11, NAK80, 718, 738, P20, W302 and other die steel, carbon steel, ordinary alloy steel, stainless steel, plastic molds, casting molds, forging molds, stamping molds, die casting molds, etc.
Applicable industry:
Widely used in mobile phones, digital products, automobiles, motorcycles and other mold manufacturing and molding industry.

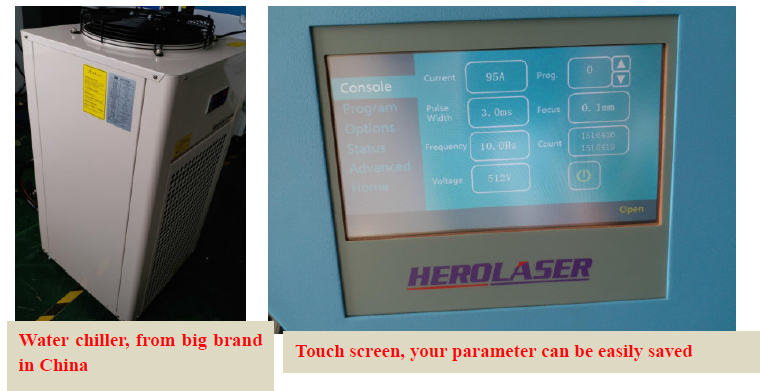

Machine main parts:
FAQ:
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample welding or testing is available
- Progressing solution design to all clients, including distributors and end users.
