400 Watt Mold Laser Welding Machine , YAG Laser Welding Machine

Name: 400 Watt Mold Laser Welding Machine YAG Laser Welding Machine
Brand: Herolaser
Price: 1 USD

Wholesale 400 Watt Mold Laser Welding Machine , YAG Laser Welding Machine from china suppliers

Brand Name : Herolaser

Model Number : ML-WY-M02

Certification : CE, FDA

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 200 sets/month

Delivery Time : 10-15 days

Packaging Details : Wooden case package: 1680*500*1500mm/560kg

Application : Laser Welding for Mold repair

Laser wevelength : 1064nm

Electricity demand : 220V /50Hz/60Hz

Output power : 400W

Dimension : 1570*480*1400mm

Net weight : 530kg

Laser source : YAG laser

Xenon lamp : Made in China

Contact Now

Tool & Die Mold Cavity Repair Mould Laser Welding Machine 400 Watt YAG Laser

Advantages and features:

With ten directions flexible Angle and position adjustment ability. The control rod carries on stepless speed control to the motor in the laser head. It is suitable for repair welding at any Angle and position on all molds.
For large size molds, there is no need for a workbench, and molds can be welded directly on the ground or forklift.
Ceramic condenser cavity, high reflectivity, long service life.

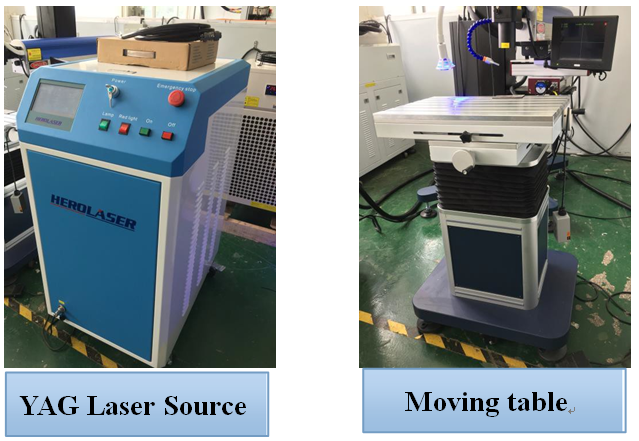

At the same time, it is equipped with precision worktable, which adopts electric lifting, so that small mold welding is convenient and flexible.

Observing system: Equipped with 3D microscope with cross tracking. The welding position can be magnified 10 times (optional 15 times, 20 times). The center of the tracking cross coincides with the center of the laser spot. With high speed liquid crystal light valve filter protection device. Protect welder's eyes from laser flicker fatigue.

400 Watt Mold Laser Welding Machine , YAG Laser Welding Machine

Control system: Industrial microcontroller control, high stability, easy maintenance.

400 Watt Mold Laser Welding Machine , YAG Laser Welding Machine

Gas protection system: Automatic synchronous argon protection system, to ensure no oxidation stains in welding parts.

Product parameters:

Model	ML-WY-M02
Average laser power	400W
Max energy of single pulse	15J
Laser wavelength	1064nm
Pulse width	0-20ms
Laser welding frequency	0.5 -100HZ
Spot size range	0.2-2mm
Welding wire	0.1-0.8mm
Power Supply	380VAC ± 10% / 50-60HZ
Power Consumption	12 KW
Water pressure protection	≤ 0.025MPa
Cooling water temperature	≤ 35 degrees
Temperature protection	45 degrees
Cooling water flow	10L/min
Dimensional	1000mm x 600mm x 1500mm
Weight	560kg
Cooling Way	Water cooling
Laser Type	Pulse
Hazard Class	4 Class

Application:

Specially for automobile mold, chassis mold, tire mold, household appliances plastic shell mold and other plastic, die casting mold and other large mold repair and welding design. Equipped with the lifting arm can be electrically lifted, 360 degrees of rotation, can weld 3 meters long, several tons of mold. And the device is equipped with pulleys for easy movement, easy to move to the injection molding machine for welding. The mold does not need to be unsealed. Manual worktable is also suitable for small and medium mold welding.

Samples for reference:

FAQ

1. How is the payment?

30% deposit before production and the balance 70% before shipment

2. How is the delivery and shipment?

Ship in 7 days after 100% payment;
Plywood box packaging

3. How will you guarantee aftersales services?

We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online

4. How about your presales service?

Speeding offer within 8 hours quick response and free consulting.
Free sample welding or testing is available
Progressing solution design to all clients, including distributors and end users.

400 Watt Mold Laser Welding Machine , YAG Laser Welding Machine
