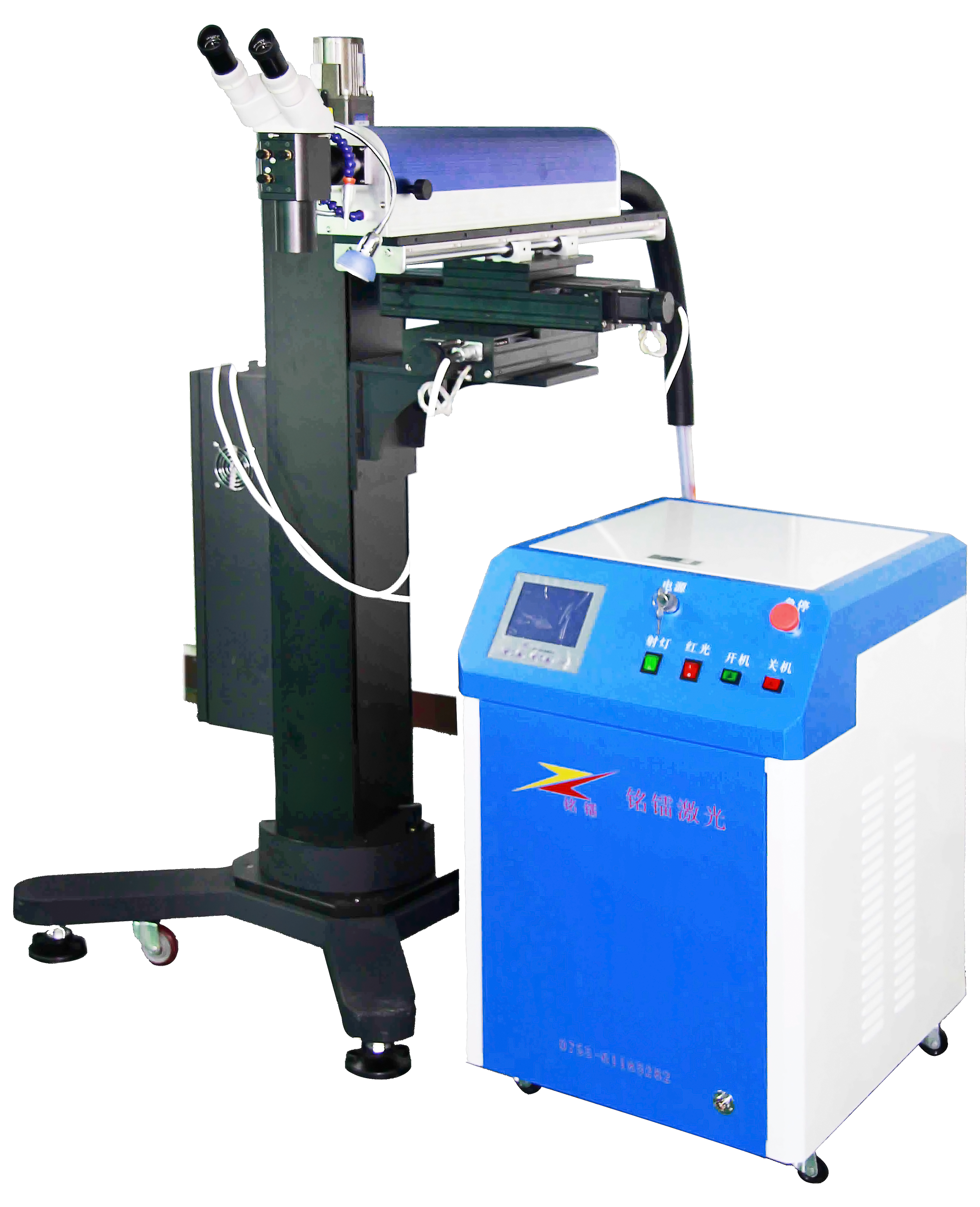

Water Cooled 220V LCD Screen Mould Laser Welding Machine Manual Type

Name: Water Cooled 220V LCD Screen Mould Laser Welding Machine Manual Type
Brand: Herolaser
Price: 1 USD

Wholesale Water Cooled 220V LCD Screen Mould Laser Welding Machine Manual Type from china suppliers

Brand Name : Herolaser

Model Number : ML-MR-200

Certification : CE, FDA

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 200 sets/month

Delivery Time : 10-15 Days

Packaging Details : Wooden case package: 1680*500*1500mm/560kg

Max. Laser Power : 200W

Laser wavelength : 1064nm

Pulse Width : 0.1-20ms

Laser Frequency : 0-50Hz

Laser Sopt range : 0.2-1.5mm

Cooling Mode : Water Cooled

Total Power : 4KW

Power Supply : 220V

Contact Now

Manual Laser Welding Machine For Mould Repairing 200W Crane Design Die Laser Welder

Product introdution:

This series of laser welding machines produced by our company is a special model specially tailored for the mold industry by our company. This machine is specially used to replace the traditional argon welding machine for product welding.The key components of the machine are all imported products from abroad. The software operation interface adopts a large-screen LCD screen to display the full Chinese interface. The interface is simple and clear, and the operator is easy to learn and use. Multiple pre-storage operation modes, self-programming, permanent memory function, applicable to various materials.The heat-affected zone is small and will not cause deformation of precision molds. The welding depth is large and the welding is firm. Fully melted, leaving no traces of repair. There is no depression in the joint between the convex part of the molten material in the bath and the substrate.

Features:

Can repair cracks, chipped corners, touch edges and depleted sealing edges
Can be welded on hard materials (~HRC60)
High accuracy, laser welding spot diameter is only 0.3mm~2.0mm
The heated area is small and the processed parts will not be deformed
Low oxidation rate, the workpiece will not change color
No porosity or trachoma after welding
The welding part can be processed, especially suitable for mold repairs with polishing requirements
After welding, the workpiece can reach 50~60 Rockwell hardness
After welding, the pattern can be etched without affecting the effect

Technical details:

Item	Name	Parameter
1	Max. laser power	200W	400W
2	Laser wavelength	1064NM
3	Pulse width	0.1- 20MS
4	Laser frequency	0- 50HZ
5	Laser spot range	0.2- 1.5MM
6	Cooling mode	Water cooled
7	Total power	4KW	9KW
8	Power supply	220V	380V

Applicable materials and fields:

Repair cracks, collapsed horn, touched edge and damaged sealing side, welding on horniness materials.

Samples for reference:

Water Cooled 220V LCD Screen Mould Laser Welding Machine Manual Type

FAQ

1. How is the payment?

30% deposit before production and the balance 70% before shipment

2. How is the delivery and shipment?

Ship in 7 days after 100% payment;
Plywood box packaging

3. How will you guarantee aftersales services?

We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online

4. How about your presales service?

Speeding offer within 8 hours quick response and free consulting.
Free sample welding or testing is available
Progressing solution design to all clients, including distributors and end users.
