1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel

Name: 1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel
Brand: Herolaser
Price: 1 USD

Wholesale 1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel from china suppliers

Brand Name : Herolaser

Model Number : ML-1500

Certification : CE, SGS

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 SETS PER MONTH

Delivery Time : 10-15DAYS

Packaging Details : PLYWOOD BOX

Pulse width : 0.5~20ms

Condition : New

Warranty : 2 Years

Single pulse energy : 80J

Wavelength : 1064nm

Focal spot diameter : 0.2mm~3mm

Cooling system : Water Cooling

Welding depth : 0.1-3.5mm

Pulse frequency : 0~100Hz

Power supply : 220v/50Hz, 380V/50/60HZ

Laser type : IPG/MAX/RECI

Keywords : Laser Welding Machine

Max. output power : 300-500w

Contact Now

Handheld Laser Wobble Welding Equipment 1500W Fiber Laser Solution

The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welders each year;
Laser welding consumes less material and has a long life;
Easy to operate, even unskilled operator can weld products beautifully;
The welding seam is smooth and small, which reduces the subsequent grinding process and saves time and cost;
No deformation, no welding spot;
Safer and more environment-friendly.

Hand-held Laser Welding VS Argon Welding

Welding type	Argon welding	Laser welding
Labor workers	4	1
One person’s Labour cost/month	8000 RMB	6000 RMB
Polishing worker	1	0
Polishing worker’s cost/month	9000 RMB	0
Total labour cost per month	41000 RMB	6000 RMB
Total income for labour worker/year	492000 RMB	72000 RMB

1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel

Specification

No.	Item	ML-WF-1500W
1	Laser Power	1500W
2	laser Wavelength	1070 NM
3	Fiber Cable length	10 meters
4	Cooling method	Water
5	Voltage	220V
6	Power consumption	5KW
7	Frequency	50/60 HZ
8	Currency	23A
9	Laser gun	Motor/lens wobble
10	Focus length	150mm
11	Cryogenic water flow	70 L/min
12	Room temperature water flow	15 L/min
13	water	distilled water
14	laser Control method	laser enable+ security lock+ metal switch/ safety clamp
15	Touch screen	PLC screen and board
16	Wire feeder	Auto feeding and drawback

Application
Ambry industry, railings of stairs and elevator, shelves, oven, stainless steel guardrail, distribution box, stainless steel home supplies etc.

1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel

Product Tags:

handheld laser welding machine for stainless steel

1500W handheld laser welding machine

1500W steel welding machine

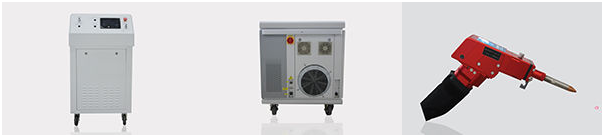

1500W Auto Feeding Handheld Laser Welding Machine For Stainless Steel Images
