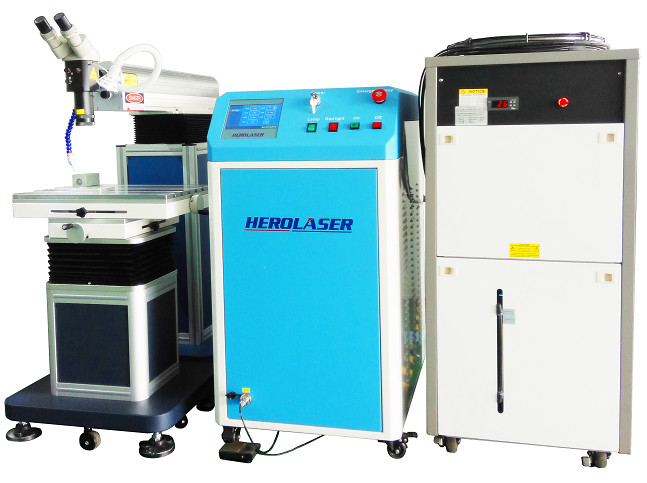

Crane Arm Mould Laser Welding Machine Repairing Various Mold Materials
Product introduction:
Laser mold welding machine fuse special welding wire damaged parts of the mold by laser instantaneous high heat energy, firmly welded to the original substrate, welding position will be by electric spark surface smooth, grinding and other processes method. After welding, thereby repair the mold. It can be used for precision repair of mold bubbles, cracks, collapses, wear and other small parts. Meichuang mold laser welding machine design beautiful, easy to move. To meet the repair needs of various mold materials, easy to operate. High hardness after welding, no crack and sand hole.
Features:
- It adopted imported ceramic condenser cavity, high reflectivity, strong power, and extremely long services life.This model occupied the largest proportion in domestic market for its proven technology and stable performance.It equipped with 1.5P high power special cooling water system is able to support the machine to work longer hours with high power in good condition.
- The base of the wortable uses electric lifting for up and down movement.
- The moving unit of the worktable is equipped with precise ball bearing bar and linear lead rail.
- It is light weight and flexible with precise positioning
- The designed of the machine, such as the adjusted laser arm; laser head & the attach equipments is to meet the varied requirement of tool & die; mould repair jobs.
Technical Specification:
| Model | ML-WY-M02-400W |
| Laser Power | 400W |
| Laser Type | YAG |
| Max energy of single pulse | 120J |
| Laser wavelength | 1064nm |
| Pulse width | 0.5-20ms |
| Laser welding frequency | 0.5 -100HZ |
| Spot size range | 0.2-2mm |
| Power Supply | 380VAC ± 10% / 50HZ/ 50A |
| Power Consumption | ≤ 12 KW |
| Cooling way | Water cooling |
| Cooling water flow | 10L/min |
| Max. height of mould | 165cm |
| Travel of the worktable | 170mm X 130mm X 200mm |
| Load-bearing of worktable | less than 150KG |
| Focal distance | 0.1mm-0.8mm |
| Weight | ≤ 400kg |
Applicable materials:
Laser die repairing welding machine is to weld the special welding wire to the damaged parts of the die through the instantaneous high heat energy generated by the laser, and firmly weld with the original base material. After welding, it is processed into a smooth surface by EDM or grinding, so as to repair the die.Widely used in die repair and metal parts repair, can weld a variety of die materials: S136, NAK80, 718, 738, P20, SKD-11, SKD-61, H13, W302, GS2344, GS2343, GS2082, etc.
Samples for reference:
FAQ:
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample welding or testing is available
- Progressing solution design to all clients, including distributors and end users.
