Herolaser CNC Fiber Laser Cutter Cutting Machine for Metal Sheet
ML-CF-3015FB The sheet metal laser cutting machine adopts two-head mutual-moving laser cutting, and the processing area is large.
The negative pressure crawler working platform is equipped with left and right feeding and rewinding devices, which enables
unwinding, cutting and rewinding in one go, which greatly reduces the time between procedures , Improve work efficiency and
processing output. As a new type of cutting machine, its work efficiency is often 2-10 times that of traditional cutting machines.
Model Profile:
Laser cutting machine is a standard optical fiber laser pipe cutting machine developed by Herolaser. It adopts long-term stable and
reliable advanced medium and high-power optical fiber laser, selects high-precision gear rack, imported high-precision linear guide
rail and other high-efficiency transmission components, and is a precision CNC automatic laser pipe cutting machine assembled
through WEIHONG professional pipe cutting control system. It is a high-tech product integrating the latest laser cutting, precision
machinery, numerical control technology and other disciplines. It is mainly used for cutting metal pipes such as carbon steel pipe and
stainless steel pipe (square pipe, round pipe and rectangular pipe). It is a useful cutting tool in the metal pipe processing industry. The
bed adopts horizontal gantry structure and combined transmission mode of gear rack and screw. Transmission components such as
reducer, guide rail and gear rack are well-known brands. It has the characteristics of stable structure, good rigidity, light weight and
high dynamic response. It is a professional laser pipe cutting machine with high efficiency, precision and stability.
Model Features:
- Can cut all kinds of graphics on planiform plates.

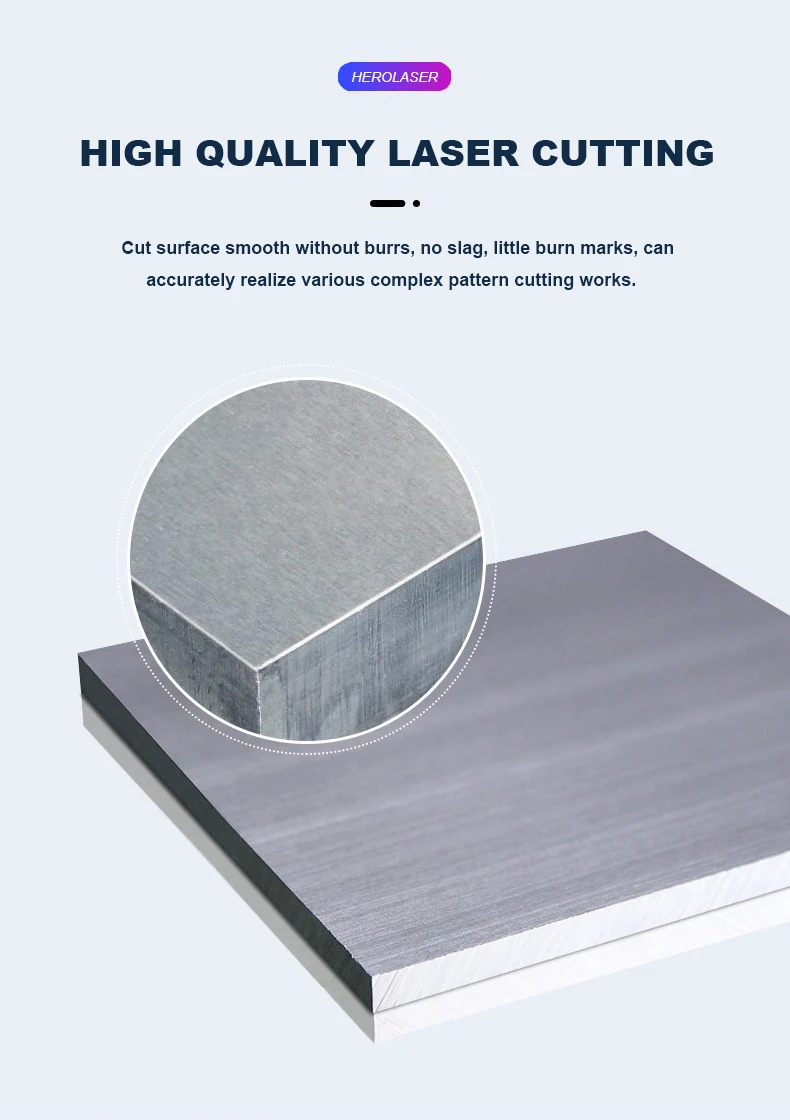

- High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.
- The laser cutting head will not touch the surface of the material and will not scratch the workpiece.
- Narrow thin kerf, small heat-affected zone, minimal local deformation of the workpiece, no mechanical deformation.
- Good processing flexibility, can process any graphics.
- It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other hard materials without deformation.
- The parallel exchange platform is used to complete the exchange within 20 seconds, which greatly improves the processing efficiency.
- Low power consumption, no reaction gas required, compressed air is used as auxiliary gas for laser cutting.
Machine Parameters:
| S/N | Name | Model | Remarks |
| 1 | High power fiber laser cutting machine | ML-CB-6020T | Herolaser |
| 2 | Numerical control system | CypCut | Shanghai Bochu |
| 3 | Servo drive | Fuji | Japan |
| 4 | Reducer | Modoli | France |
| 5 | X, Y-axis rack | YYC | Taiwan China |
| 6 | Z-axis lead screw | HIWIN | Taiwan China |
| 7 | Linear guide rail | HIWIN | Taiwan China |
| 8 | Laser | MAX/RECI/IPG | China/German |
| 9 | Cutting head | Osprey | China |
| 10 | Cooling-water machine | Teyu | China |
| 11 | Pneumatic components | SMC (or equivalent) | Japan |
| 12 | Electrical components | Schneider (or equivalent) | France
|
Cutting Process Parameters
There are differences due to different types of cutting head and laser. Taking 1500W as an example, the following parameters are for reference only:
| S/N | Material | Thickness(mm) | Speed(m/min) | Auxiliary gas |
| 1 | Stainless Steel | 1 | 35-45 | HP N2 |
| 2 | Stainless Steel | 2 | 12-18 | HP N2 |
| 3 | Stainless Steel | 3 | 4.5-5.5 | HP N2 |
| 4 | Stainless Steel | 4 | 2.5-3.5 | HP N2 |
| 5 | Stainless Steel | 5 | 1.5-2.0 | HP N2 |
| 6 | Stainless Steel | 6 | 0.8-0.9 | HP N2 |
| 7 | Stainless Steel | 8 | 0.2-0.3 | HP N2 |
| 8 | Carbon steel | 1 | 16-20 | O2 |
| 9 | Carbon steel | 2 | 7.8-8.3 | O2 |
| 10 | Carbon steel | 3 | 4.6-5.2 | O2 |
| 11 | Carbon steel | 4 | 2.5-3.0 | O2 |
| 12 | Carbon steel | 5 | 2.0-2.5 | O2 |
| 13 | Carbon steel | 6 | 1.7-2.0 | O2 |
| 14 | Carbon steel | 8 | 1.2-1.5 | O2 |
| 15 | Carbon steel | 10 | 1.0-1.2 | O2 |
| 16 | Carbon steel | 12 | 0.8-0.9 | O2 |
| 17 | Carbon steel | 16 | 0.5-0.7 | O2 |
| 18 | Aluminum | 1 | 23-35 | HP N2 |
| 19 | Aluminum | 2 | 7.5-9 | HP N2 |
| 20 | Aluminum | 3 | 4-5 | HP N2 |
| 21 | Aluminum | 4 | 2-2.5 | HP N2 |
| 22 | Aluminum | 5 | 0.9-1.3 | HP N2 |
| 23 | Aluminum | 6 | 0.5-0.7 | HP N2 |
| 24 | Aluminum | 8 | 0.2-0.25 | HP N2 |
| S/N | Material | Thickness(mm) | Speed(m/min) | Auxiliary gas |
| 1 | Stainless Steel | 1 | 35-45 | HP N2 |
| 2 | Stainless Steel | 2 | 12-18 | HP N2 |
| 3 | Stainless Steel | 3 | 4.5-5.5 | HP N2 |
| 4 | Stainless Steel | 4 | 2.5-3.5 | HP N2 |
| 5 | Stainless Steel | 5 | 1.5-2.0 | HP N2 |
| 6 | Stainless Steel | 6 | 0.8-0.9 | HP N2 |
| 7 | Stainless Steel | 8 | 0.2-0.3 | HP N2 |
| 8 | Carbon steel | 1 | 16-20 | O2 |
| 9 | Carbon steel | 2 | 7.8-8.3 | O2 |
| 10 | Carbon steel | 3 | 4.6-5.2 | O2 |
| 11 | Carbon steel | 4 | 2.5-3.0 | O2 |
| 12 | Carbon steel | 5 | 2.0-2.5 | O2 |
| 13 | Carbon steel | 6 | 1.7-2.0 | O2 |
| 14 | Carbon steel | 8 | 1.2-1.5 | O2 |
| 15 | Carbon steel | 10 | 1.0-1.2 | O2 |
| 16 | Carbon steel | 12 | 0.8-0.9 | O2 |
| 17 | Carbon steel | 16 | 0.5-0.7 | O2 |
| 18 | Aluminum | 1 | 23-35 | HP N2 |
| 19 | Aluminum | 2 | 7.5-9 | HP N2 |
| 20 | Aluminum | 3 | 4-5 | HP N2 |
| 21 | Aluminum | 4 | 2-2.5 | HP N2 |
| 22 | Aluminum | 5 | 0.9-1.3 | HP N2 |
| 23 | Aluminum | 6 | 0.5-0.7 | HP N2 |
| 24 | Aluminum | 8 | 0.2-0.25 | HP N2 |
| S/N | Material | Thickness(mm) | Speed(m/min) | Auxiliary gas |
| 1 | Stainless Steel | 1 | 35-45 | HP N2 |
| 2 | Stainless Steel | 2 | 12-18 | HP N2 |
| 3 | Stainless Steel | 3 | 4.5-5.5 | HP N2 |
| 4 | Stainless Steel | 4 | 2.5-3.5 | HP N2 |
| 5 | Stainless Steel | 5 | 1.5-2.0 | HP N2 |
| 6 | Stainless Steel | 6 | 0.8-0.9 | HP N2 |
| 7 | Stainless Steel | 8 | 0.2-0.3 | HP N2 |
| 8 | Carbon steel | 1 | 16-20 | O2 |
| 9 | Carbon steel | 2 | 7.8-8.3 | O2 |
| 10 | Carbon steel | 3 | 4.6-5.2 | O2 |
| 11 | Carbon steel | 4 | 2.5-3.0 | O2 |
| 12 | Carbon steel | 5 | 2.0-2.5 | O2 |
| 13 | Carbon steel | 6 | 1.7-2.0 | O2 |
| 14 | Carbon steel | 8 | 1.2-1.5 | O2 |
| 15 | Carbon steel | 10 | 1.0-1.2 | O2 |
| 16 | Carbon steel | 12 | 0.8-0.9 | O2 |
| 17 | Carbon steel | 16 | 0.5-0.7 | O2 |
| 18 | Aluminum | 1 | 23-35 | HP N2 |
| 19 | Aluminum | 2 | 7.5-9 | HP N2 |
| 20 | Aluminum | 3 | 4-5 | HP N2 |
| 21 | Aluminum | 4 | 2-2.5 | HP N2 |
| 22 | Aluminum | 5 | 0.9-1.3 | HP N2 |
| 23 | Aluminum | 6 | 0.5-0.7 | HP N2 |
| 24 | Aluminum | 8 | 0.2-0.25 | HP N2 |
After-Sales Services
1. 2 year guarantee for laser source(people damaged are charged)
2. Full technical support / by e-mail, call and video
3. Spare parts supply.
4. Free online training installation and operation
5. 12 hours quick feedback & after-sales services
6. ODM/OEM service
FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.
2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay
3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.
4. Can I visit the factory?
Available to have a visit to our factory at any time.
5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.
6. Can I go to the factory to test the machine before shipment?
Of course you can.
7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.
8.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
