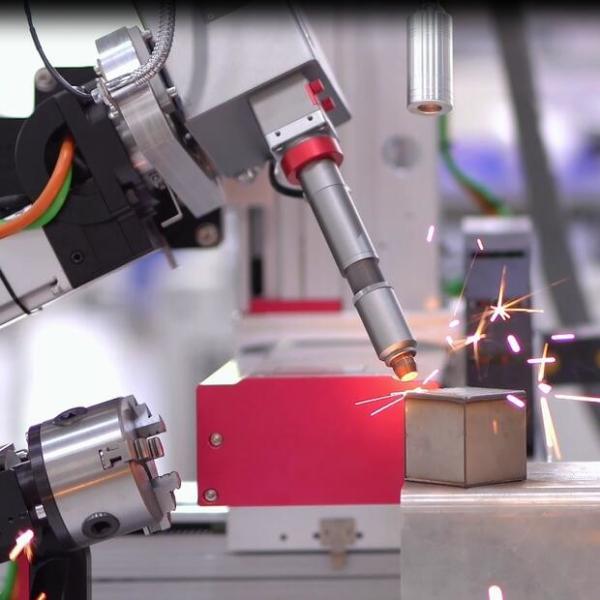

Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel

Name: Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel
Brand: Herolaser
Price: 1 USD

Wholesale Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel from china suppliers

Brand Name : Herolaser

Model Number : ML-WF-ZD-3D-2000

Certification : ISO9001, FDA

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 30-45 days

Packaging Details : Wooden case

Dimensions : 1600*1400*2000MM

Machine weight : 280KG

Laser power : 2000W

Average load power : 7.2KW

Welding depth : 3 mm

Focal Spot Diameter : 0.15 mm-0.45 mm

Contact Now

Parameter

Main technical parameters of the equipment
Product Specifications
S/N	Main component name	Parameter	Remark
1	X axis effective stroke	500mm
2	Y axis effective stroke	300mm
3	Z axis effective stroke	300mm
4	Dimensions	1500×1400×1900mm
5	Machine weight	280kg
6	Module operating speed	Y axis:10m/min X axis:10m/min Z axis:5m/min
7	repeated positioning accuracy	±0.02mm
8	Rotating table	Circle runout accuracy ≤0.05mm
9	electricity demand	220V/380V
10	Average load power	6.5KW

Equipment configuration list
Configuration Parameter
S/N	Name	Specifications & Models	QTY	Brand	Remark
1	Fixture mounting plate	350mm×450mm	1	Hero Laser Custom
2	Laser	According to sample welding requirements	1	MAX or IPG
3	Motor	servo motor	3	Huichuan
4	Computer	PC/Industrial Computer	1	Advantech
5	Chiller	According to laser power	1	S & A
6	Welding head	According to sample welding requirements	1	Hero Laser
7	CCD Visual observation system	camera light source	1	Microsan Basler/LeTV Light Source
8	Z axis module	300mm stroke	1	Hero Laser Custom	X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7
9	X axis module	500mm stroke	1	Hero Laser Custom
10	Y axis module	300mm stroke	1	Hero Laser Custom
11	Rotating table	Three-jaw rotary chuck	1	Hero Laser Custom
12	Lower cabinet	Sheet metal welding, paint baking	1	Hero Laser Custom

Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel

Products Description

1. High speed, large depth and small deformation.

2. It can be welded at room temperature or under special conditions, and the welding equipment is simple. For example, if a laser passes through an electromagnetic field, the beam will not shift; Laser can weld in vacuum, air and some gas environment, and can weld through glass or materials with transparent beam.

3. It can weld refractory materials such as titanium, quartz, etc., and can weld dissimilar materials with good results.

4. After laser focusing, the power density is high. When welding high-power devices, the depth width ratio can reach 5:1, and the maximum can reach 10:1.

5. Micro welding is possible. After focusing, the laser beam can obtain very small light spot, and can be accurately positioned, which can be applied to the assembly welding of micro and small workpieces in mass automatic production. (The minimum facula can reach 0.1mm)

6. It can be used to weld parts that are difficult to access. It is very flexible to perform non-contact remote welding. Especially in recent years, fiber transmission technology has been used in YAG laser processing technology, and the popularity of fiber continuous laser has made laser welding technology more widely promoted and applied, which is more convenient for automatic integration.

7. The laser beam can easily realize the beam splitting according to time and space, and can be processed simultaneously by multiple beams and multiple stations, providing conditions for more precise welding.

Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel

Laser welding machines use high-energy pulsed lasers to weld objects

Herolaser automatic laser welding machine can realize the welding of metal work pieces in straight lines, circles and other arbitrary trajectories, such as phone housing, mobile phone batteries, sensors, medical equipment and other industries.

After the laser beam is focused, the point can be accurately positioned and used for group welding of small and

micro workpieces to achieve mass production.


Sample Show

Swing welding head

The process that traditional magnetic head cannot complete, the swing welding head only

needs to use 70% of the power, which can save the cost of the laser;

In addition, the swing welding method is adopted, the width of the welding joint is adjustable,

and the welding fault tolerance is strong, which makes up for the small shortcomings of the

laser welding joint. The tolerance range and welding width of the processed parts are

enlarged, and a good welding forming effect is obtained.

Applicable Industry

Herolaser 2kw Metal Fiber CNC Laser Welder Machine For Stainless Steel

precision machinery

communications

handicrafts

Installation Instructions
