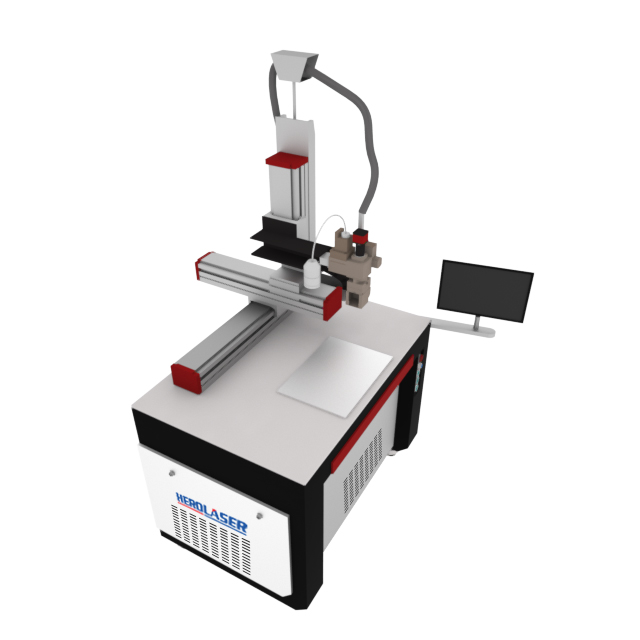

Steel Sheet Metal Aluminium Automatic Welding Soldering Machine For Stainless Steel

Name: Steel Sheet Metal Aluminium Automatic Welding Soldering Machine For Stainless Steel
Brand: Herolaser
Price: 1 USD

Wholesale Steel Sheet Metal Aluminium Automatic Welding Soldering Machine For Stainless Steel from china suppliers

Brand Name : Herolaser

Model Number : ML-WF-ZD-3D-3000

Certification : ISO9001, FDA

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 30-45 days

Packaging Details : Wooden case

Dimensions : 1600*1400*2000MM

Machine weight : 380KG

Laser power : 3000W

Average load power : 10.9KW

Welding depth : 4mm

Focal Spot Diameter : 0.10mm-0.45 mm

Contact Now

Parameter

Main technical parameters of the equipment
Product Specifications
S/N	Main component name	Parameter	Remark
1	X axis effective stroke	500mm
2	Y axis effective stroke	300mm
3	Z axis effective stroke	300mm
4	Dimensions	1500×1400×1900mm
5	Machine weight	380kg
6	Module operating speed	Y axis:10m/min X axis:10m/min Z axis:5m/min
7	repeated positioning accuracy	±0.02mm
8	Rotating table	Circle runout accuracy ≤0.05mm
9	electricity demand	220V/380V
10	Average load power	10.9KW

Equipment configuration list
Configuration Parameter
S/N	Name	Specifications & Models	QTY	Brand	Remark
1	Fixture mounting plate	350mm×450mm	1	Hero Laser Custom
2	Laser	According to sample welding requirements	1	MAX or IPG
3	Motor	servo motor	3	Huichuan
4	Computer	PC/Industrial Computer	1	Advantech
5	Chiller	According to laser power	1	S & A
6	Welding head	According to sample welding requirements	1	Hero Laser
7	CCD Visual observation system	camera light source	1	Microsan Basler/LeTV Light Source
8	Z axis module	300mm stroke	1	Hero Laser Custom	X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7
9	X axis module	500mm stroke	1	Hero Laser Custom
10	Y axis module	300mm stroke	1	Hero Laser Custom
11	Rotating table	Three-jaw rotary chuck	1	Hero Laser Custom
12	Lower cabinet	Sheet metal welding, paint baking	1	Hero Laser Custom

Steel Sheet Metal Aluminium Automatic Welding Soldering Machine For Stainless Steel

Products Description

1. High speed, large depth and small deformation.

2. It can be welded at room temperature or under special conditions, and the welding equipment is simple. For example, if a laser passes through an electromagnetic field, the beam will not shift; Laser can weld in vacuum, air and some gas environment, and can weld through glass or materials with transparent beam.

3. It can weld refractory materials such as titanium, quartz, etc., and can weld dissimilar materials with good results.

4. After laser focusing, the power density is high. When welding high-power devices, the depth width ratio can reach 5:1, and the maximum can reach 10:1.

5. Micro welding is possible. After focusing, the laser beam can obtain very small light spot, and can be accurately positioned, which can be applied to the assembly welding of micro and small workpieces in mass automatic production. (The minimum facula can reach 0.1mm)

6. It can be used to weld parts that are difficult to access. It is very flexible to perform non-contact remote welding. Especially in recent years, fiber transmission technology has been used in YAG laser processing technology, and the popularity of fiber continuous laser has made laser welding technology more widely promoted and applied, which is more convenient for automatic integration.

7. The laser beam can easily realize the beam splitting according to time and space, and can be processed simultaneously by multiple beams and multiple stations, providing conditions for more precise welding.

Steel Sheet Metal Aluminium Automatic Welding Soldering Machine For Stainless Steel

Laser welding machines use high-energy pulsed lasers to weld objects

Herolaser automatic laser welding machine can realize the welding of metal work pieces in straight lines, circles and other arbitrary trajectories, such as phone housing, mobile phone batteries, sensors, medical equipment and other industries.

After the laser beam is focused, the point can be accurately positioned and used for group welding of small and

micro workpieces to achieve mass production.


Sample Show

Laser welding is one of the important aspects in the application of laser material processing technology. In the 1970s, it was mainly used for welding thin wall materials and low-speed welding. The welding process was of heat conduction type, that is, laser radiation heated the surface of the workpiece. The surface heat diffused through the heat transfer and guided to the interior. By controlling parameters such as the width, energy, peak power and repetition frequency of the laser pulse, the workpiece was melted to form a specific molten pool. Because of its unique advantages, it has been successfully applied to the precision welding of micro and small parts

Steel Sheet Metal Aluminium Automatic Welding Soldering Machine For Stainless Steel

precision machinery

communications

handicrafts

Installation Instructions

ABOUT HEROLASER

Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the research and development, production and marketing of laser equipment group of companies, has formed a complete series of industrial laser equipment supply platform.

 With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

 Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

Certification

Packaging & Shipment

Our Services

---Pre-Sales Services

① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time

---After-Sales Services
① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply.
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service


FAQ

1. What model does Herolaser produce?
 Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

 2. What are the payment methods of Herolaser Company?
 T/T, LC, CAD, OA, Trade Insurance, Alibabapay

 3. Does Herolaser accept Acceptance?
 Yes, we accept bank acceptances within 6 months, not commercial acceptances.

 4. Can I visit the factory?
 Available to have a visit to our factory at any time.

 5. What can I get with the purchase of equipment?
 Each machine has a set of standard accessories.

 6. Can I go to the factory to test the machine before shipment?
 Of course you can.

 7. How is the delivery and shipment?
 Ship in 7 days after 100% payment; Packaged with Plywood box.

 8. How about your pre-sales service?
 Provide quick response and free consulting services within 8 hours.

 9. How will you guarantee after-sales services?
 We offer two years warranty for laser source, one year for the machine.

 10. How will you guarantee after-sales services?
 We offer two years warranty for laser source, one year for the machine.
