Home > Laser Cleaning Machine >

Herolaser 1064 NM Laser Cleaning Machine For Rust Removal

Product Categories
Shenzhen Herolaser Equipment Co., Ltd.
Contact Now

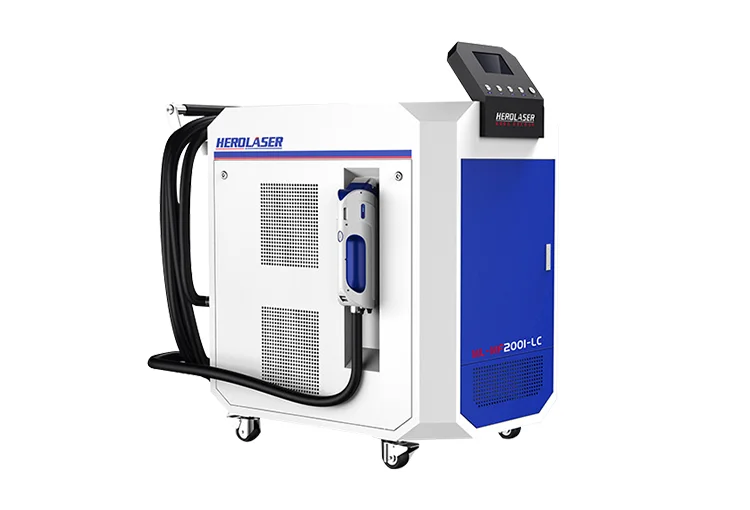

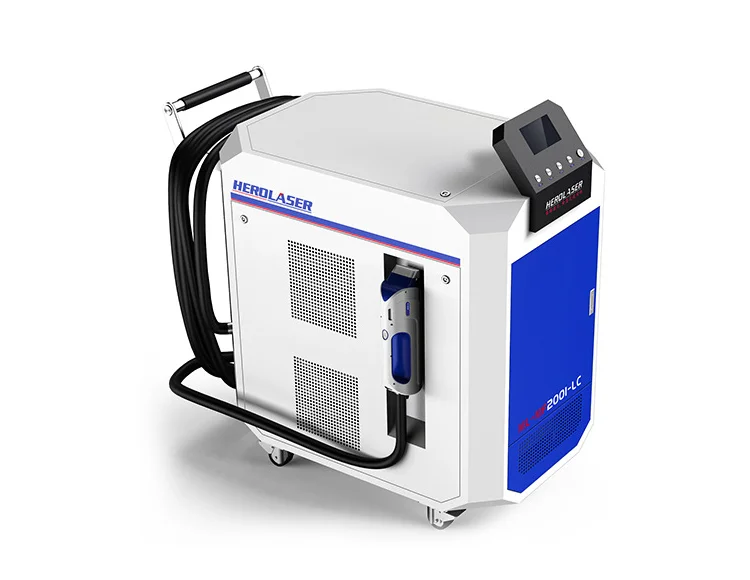

Herolaser 1064 NM Laser Cleaning Machine For Rust Removal

Brand Name : Herolaser

Model Number : ML-MF100I-LC

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 30-45 days

Packaging Details : Wooden case

Laser Wavelength : 1064 nm

Focal length : 210mm

Handheld Laser Head Weight : 1.5kg 3kg

Pulse width : 20-50k ns

Laser frequency : 20-50k HZ

Laser source type : Fiber laser source

Contact Now

Parameter
Model
ML-MF100I-LC
ML-MF200I-LC
ML-MF500I-LC
ML-MF1000I-LC
ML-QF-WS-JX-HW2000
Laser Power
100W
200W
500W
1000W
2000W
Cooling Way
Air Cooling
Water cooling
Laser Wavelength
1064 nm
Power Supply
AC 220-250V / 50 Hz
AC 380V / 50 Hz
Maximum KVA
500W
2200W
5100W
7500W
14000W
Fiber Length
3m
12-15m
12-15m
12-15m
12-15m
Dimension
460x285x450mm
1400X860X1600 mm
2400X860X1600mm+
555X525X1080mm (external chiller size)
Focal length
210mm
Focal depth
2mm
5mm
8mm
Gross Weight
85kg
250kg
310kg
360kg
Total 480kg
Handheld Laser Head Weight
1.5kg3 kg
Working Temperature
The service life of the laser is long at constant temperature of 5-40 ° C (normally at constant temperature of 25 ° C)
Pulse width
20-50k ns
Scan Width
10mm-80mm (customizable additional price)
Laser frequency
20-50k HZ
Laser source type
Fiber laser source
Options
Portable/
Handheld
Handheld/
Automation/
Robotic system
Handheld/
Automation/
Robotic system
Handheld/
Automation/
Robotic system
Handheld/
Automation/
Robotic system

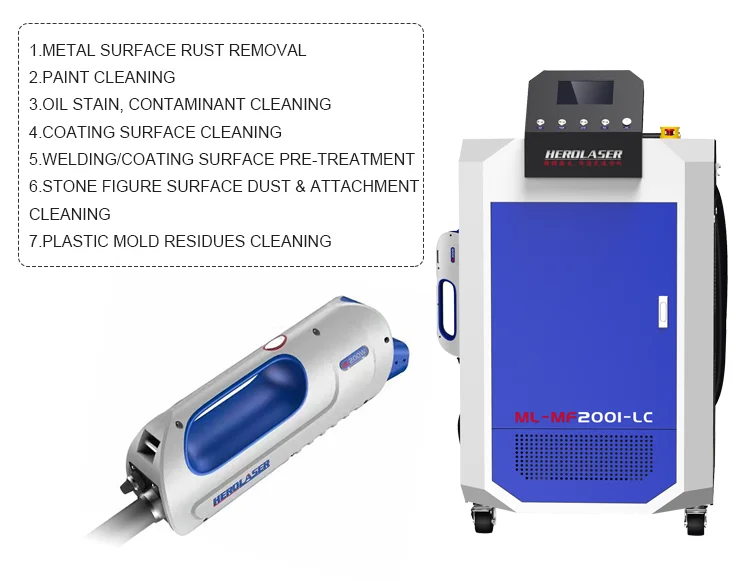

Products Description

Product Introduction

Laser cleaning machine is the latest high-tech product. Easy to install, operate, easy to achieving automation. Plug in power,

turn on and start cleaning - without chemicals, media, dust, water.

Cleaning with no detergent, no media, no dust, no water. Auto focus, can clean curved surface, gentle cleaning surface. Cleaningresin, oil stain, rust, coating materials, paints on workpiece surface.
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Certification
1. First high power fiber laser cleaning machine in China.
2. Non-contact cleaning,can be no damage to workpiece.
3. Precision positioning, selective cleaning, desired cleaning area can be applied to the workpiece.
4. No need chemical detergent, no consumable. Safe & environment-friendly.
5. Easy to operate, either portable or equipped with robot for automatic cleaning.
6. High cleaning efficiency, time-saving.
7. Stable laser cleaning system, free maintenance.
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal

Applications:

Herolaser 1064 NM Laser Cleaning Machine For Rust Removal

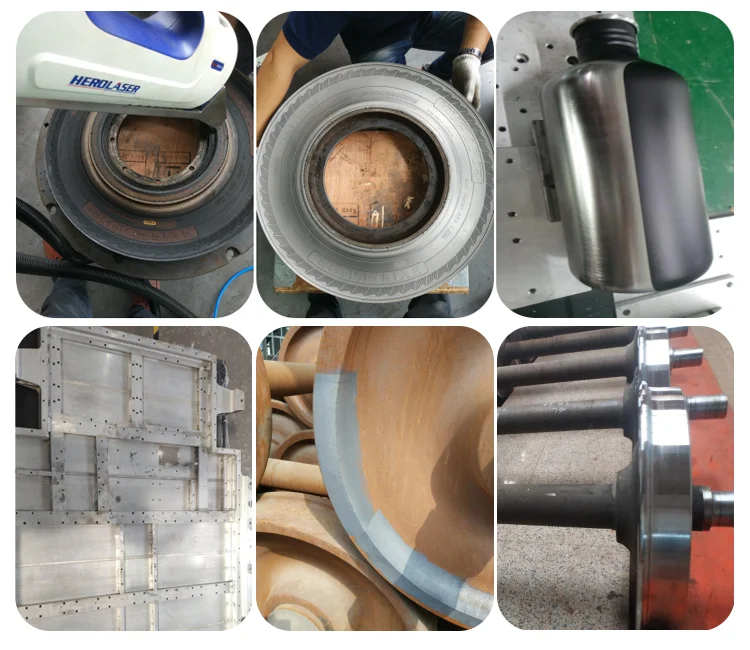

Sample pictures:
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal


Comparison with traditional clean methods

Comparision
Laser Cleaning
Chemical Cleaning
Mechanical Grinding
Dry ice cleaning
Washiing Method
non-contact cleaning
contact cleaning
Abrasive contact cleaning
non-contact cleaning
Harm to base material
None
Yes
Yes
None
Washing Efficiency
High
Low
Low
Mid
Consumable
Power
Chemical Detergent
Abrasive paper, grinder, abrasive stone
Dry Ice
Washing result
Very good, very clear
Medium, uneven
Medium, uneven
Good, uneven
Precision Washing
Accuracy controllable. Hig hprecision
Uncontrollable, low precision.
Uncontrollable, medium precision.
Uncontrollable, poor precision.
Safety/Environment
No pollution
Chemical pollution
Dust pollution
No pollution
Operation
Easy to operate, portable or automation optional.
Complicated process, higher technical requirement of the operator. Pollution prevention measures required.
Need more time & manpower. Pollution prevention measures required
Easy to operate, portable or automatic.
Investment
High investment on machine. But no consumable, low maintenance cost
Low investment on machine. But expensive consumables
Medium investment on machine. High man-power cost.
Medium investment on machine. High consumable cost.
Applicable Industry
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal

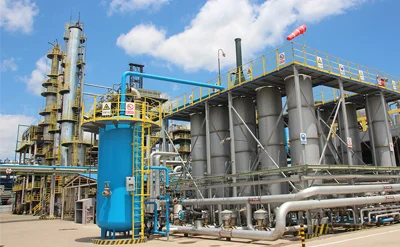

Ship Automotive Petrochemical
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal

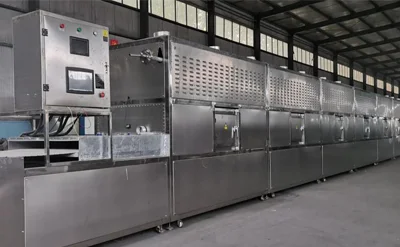

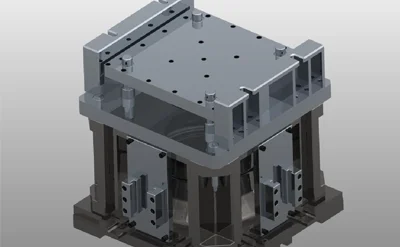

Rubber Tire Mould Food equipment
Company Information
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
Characteristics
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Packaging & Shipment
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Herolaser 1064 NM Laser Cleaning Machine For Rust Removal
Our Services

---Pre-Sales Service

① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time
---After-sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service
FAQ

1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

7. Can I go to the factory to test the machine before shipment?
Of course you can.

8. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

9. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

10.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.

11. What are the advantages of laser cleaning machine?
1. Laser cleaning has the characteristics of no grinding and non-contact,
2. Cleanable organic pollutants,
3. Cleanable inorganic substances: metal corrosion, metal particles, dust, etc.
4. Application effects include: rust removal, paint removal, degreasing, cultural relics restoration, glue removal, coating
removal and coating removal.

12. Is it easy to operate?
The operation is simple. When the power is turned on and the equipment is turned on, the cleaning can be carried out without chemical reagent, medium, dust and water.
