20W Portable Fiber Laser Marking Machine 220V Metal Laser Engraver
Product introdution:
Portable fiber laser marking machine adopts the original imported fiber laser, high-speed scanning vibrator system, stable output power, good optical mode, excellent beam quality, fast marking speed, good effect, high efficiency, can fully meet the needs of customers for mass production. Simple operation, no consumables, low operating cost, can fully meet the needs of industrial continuous work, its unique light weight, small size and easy to carry and other advantages, especially suitable for shops, factories and other places for plastic and metal marking, such as jewelry marking, arts and crafts gift marking.
Characteristics and advantages:
- Totally enclosed rabbit maintain fixed laser optical system;
- Good quality of light, power stability, long service life;
- Marking speed faster and more truly;
- Spport red light red light positioning and fast prime function;.
- USB control card.
- Supports TrueType fonts, single font, one-dimensional bar code and two-dimensional bar code, compatible with commonly used bitmap format (BMP, JPG, ti, etc) and vector graphics (PLT, DXF, a, etc.);
- Marking the layer parameters can be designed.
- Light weight small size easy to carry, can be used under various;
- Vibration mirror can according to need to rotate 90 degrees, the side marking (suitable for assembly line).
Technical details:
| Model | ML-MF-FT-BX-HW20 |
| Laser wavelength (μm) | 1.6 |
| Beam quality (㎡) | ＜2 |
| Laser power (w) | 20 |
| Pulsed frequency (Khz) | 20~100 |
| Cooling method | Built-in air forced |
| Marking range (mm*mm) | 70*70/110*110/175*175 |
| Focal distance | 100/163/254 |
| Laser Source | MAX |
| Service Life | >100,000 Hours |
| Work distance | 103/188/288 |
| Min linewidth | 0.02 |
| Min character | 0.15 |
| Marking speed (m/s) | 0~7000 |
| Supported graphic format | PCX, BMP, PLT, DXF |
| Power supply | 220±10% |
| Frequency (Hz) | 50/60 |
| Dimension (mm*mm*mm) | 880*760*1400 |
| Net weight (kg) | 125 |
| Working temperature (℃) | 10-30 |
| Working humidity | 5-85% (no condensation) |
| Power consumption (kw) | 1 |
Application materials:
Metal marking, plastic material marking, dark marking.
Application industry:
Cell phone buttons, plastic buttons light, electronic components, integrated circuit (IC), electrical appliances, communication products, tools accessories, knives, glasses watches and clocks, jewelry, auto parts, bags buckle, cooking utensils, stainless steel products, sanitary and marking, etc.
Marking samples for reference:
FAQ
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample marking or testing is available
- Progressing solution design to all clients, including distributors and end users.
Product Tags:
|
|

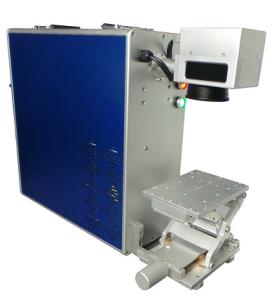

Herolaser 20 Watt Fiber Laser Images
|
