Wobble Welding Robot Laser Welding Machine with Automatic Wire Feeding
Product introduction:
The robot laser welding system consists of fiber laser, laser power supply, control system, laser indication and positioning system, motion system, rotating system, WOBBLE laser welding joint, cooling system and so on. Laser generator adopts imported fiber laser, laser pulse waveform can be edited arbitrarily, high stability of energy output.
Laser welding joint adopts laser welding joint independently developed by Herolaser, which has very high welding stability and flexibility, and can be welded by 360 degrees rotation and swing.
The cooling system of fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin. The temperature measuring device detects the water temperature in the water tank in real time and judges whether the water temperature is too high. If the temperature exceeds the upper limit, the system will automatically shut down the laser to avoid damage to the laser. After the machine is opened, the water circulation and the radiator form heat exchange with the outside world, which quickly takes away the heat generated when the laser is working to ensure that the laser works normally. The cooling system and the whole machine adopt the integrated design, which makes the system more concise and occupies a small area.
Model features:
1. The fiber laser spot is very small, the heat affected zone is small, the deformation is small, and the welding speed is super-fast.
2. Fiber laser service life of 100,000 hours, complete no consumables, daily maintenance is more convenient.
3. 30% of the energy provided by the power supply is converted into laser energy, making the equipment more energy saving and electricity saving.
4. CCD LCD monitoring and observation system, can clearly observe the product positioning and welding effect according to the red light indication.
5. Fiber laser multi-mode welding, according to the requirements of the product can be freely converted pulse and continuous mode.
6. It can be difficult to approach the precise parts, the implementation of flexible transmission of non-contact welding, has a great flexibility, adapt to a variety of complex products seam welding, welding, butt welding, stack welding, etc.
Product parameters:
| Model | ML-WF-4D |
| Average laser power | 1000w | 1500w | 3000w |
| Max laser power | 1000w | 1500w | 3000w |
| Max energy of single pulse | 85J | 110J | 150J |
| Laser wavelength | 1070nm |
| Laser weld depth | 0-3 mm(up to material) |
| Laser welding frequency | 1HZ-5000Hz |
| Spot size range | 0.3-2mm |
| Power Supply | 380VAC ± 10% / 50HZ |
| Power Consumption | 5KW | 6KW | 8KW |
| Dimensional | 1200 x 1300 x 1400mm |
| Weight | 220 | 250 | 270 |
| Cooling Way | Water cooling |
| Laser Type | Continuous laser |
Main Configuration:
CCD vision

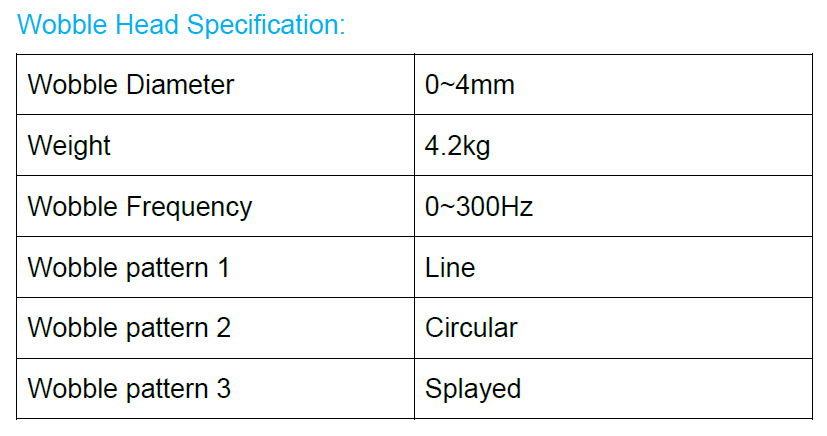

Wobble welding head
Samples for reference:
F&Q:
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample welding or testing is available
- Progressing solution design to all clients, including distributors and end users.
