Wobble Welding Robot Laser Welding Machine with Automatic Wire Feeding
Product introduction:
The product is mainly composed of fiber laser, cooling system, robot system, power control system, double station feeding system and so on. With safety protection performance; The whole system has a very perfect anti-static treatment system. The equipment is easy to use, operate and maintain, beautiful in appearance and does not pollute the environment.
It is characterized by narrow weld, large length-diameter ratio, small deformation, good weld surface forming and good material adaptability.
The equipment is easy to operate, electrical safety, personal safety and health in accordance with the European and Chinese standards and requirements.
Wobble double wedge swing welding joint technical characteristics:
Herolaser’s patented technology is the first in China. In laser welding head WOBBLE configuration module, its unique way of wedge vibration makes weld widened, wide range of laser welding application, for more master pieces, weld wider artifacts can realize high precision laser welding, and welding quality effect is better than common welding head, weld surface is relatively smooth, beautiful, good welding quality.
- The allowable range of weld width is expanded
- Extremely high process repeatability/process stability
- Better weld formability
- High quality spot welding
- Lower requirements for laser power
- Excellent welding ability of aluminum alloy
Product parameters:
| Model | ML-WF-4D |
| Average laser power | 1000w | 1500w | 3000w |
| Max laser power | 1000w | 1500w | 3000w |
| Max energy of single pulse | 85J | 110J | 150J |
| Laser wavelength | 1070nm |
| Laser weld depth | 0-3 mm(up to material) |
| Laser welding frequency | 1HZ-5000Hz |
| Spot size range | 0.3-2mm |
| Power Supply | 380VAC ± 10% / 50HZ |
| Power Consumption | 5KW | 6KW | 8KW |
| Dimensional | 1200 x 1300 x 1400mm |
| Weight | 220 | 250 | 270 |
| Cooling Way | Water cooling |
| Laser Type | Continuous laser |
| IPG Laser | IPG made in Germany |
Main Configuration:
| Laser source | IPG/MAX/RECI brand |
| Control System | Android system |
| Computer | Standard computer,win 7 |
| Observing System | CCD visual |
| Rotary | Optional |

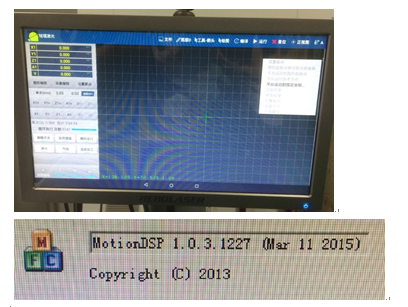

Welding software: Android System or DSP1.0
CCD vision
Samples for reference:
F&Q:
1. How is the payment?
- 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
- Ship in 7 days after 100% payment;
- Plywood box packaging
3. How will you guarantee aftersales services?
- We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
- Engineers available to service machinery overseas
- Free technical training in our factory
- Free sample can be sent to you
- Professional technical team 24 hours online
4. How about your presales service?
- Speeding offer within 8 hours quick response and free consulting.
- Free sample welding or testing is available
- Progressing solution design to all clients, including distributors and end users.
